AD96687BQ - Analog Devices

Description: ANALOG DEVICES - AD96687BQ - Analogue Comparator, High Speed, 2 Comparators, 3.5 ns, DIP, 16 Pins

Download AD96687BQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

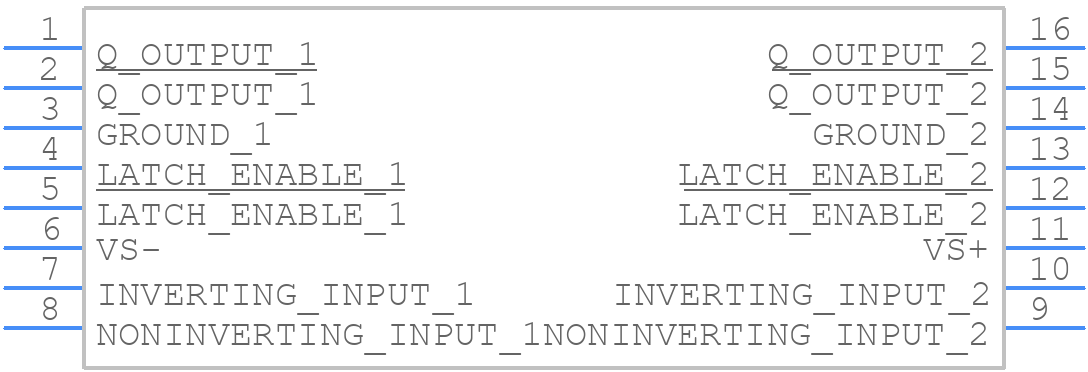

AD96687BQ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD96687BQ - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-16_2021
click to zoom

AD96687BQ Details

  • Manufacturer Part Number:

    AD96687BQ

  • Source Url Status Check Date:

    2013-05-01 14:56:31.56

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    CERAMIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    Q-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    13 µA

  • Bias Current-Max (IIB) @25C:

    10 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-GDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    21.34 mm

  • Neg Supply Voltage Limit-Max:

    -6.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5.2 V

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Type:

    OPEN-EMITTER

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    2.5 ns

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    36 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD96687BQ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD96687BQ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use short traces and avoid crossing digital and analog signals.
  • To optimize the AD96687BQ's performance for high-frequency applications, use a low-ESR capacitor for the VCC pin, minimize the length of the input traces, and use a high-frequency-compatible PCB material. Also, ensure that the device is properly bypassed and decoupled.
  • The AD96687BQ can handle clock frequencies up to 100 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • To troubleshoot issues with the AD96687BQ's analog-to-digital conversion, check the input signal amplitude and frequency, ensure proper grounding and shielding, and verify that the device is properly configured and calibrated. Also, check for noise and distortion in the input signal and the power supply.
  • Yes, the AD96687BQ can be used in a multi-channel application. However, each channel requires a separate device, and the devices must be properly synchronized to ensure proper operation.
