- Part Number AD9708ARZRL
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Other

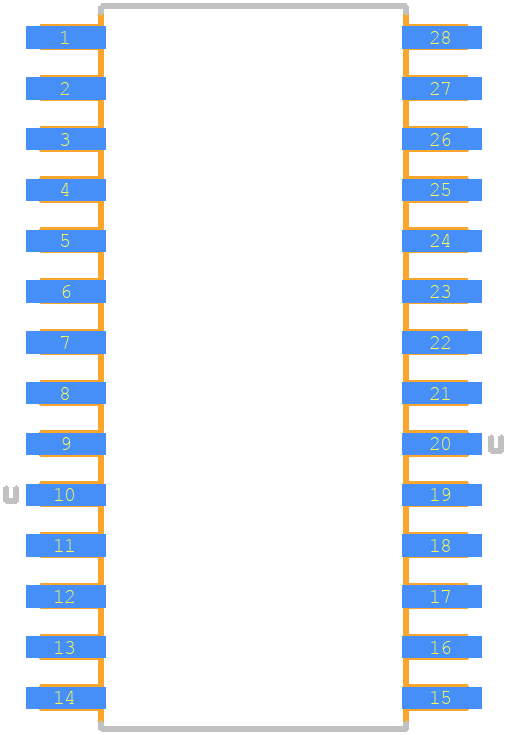

- Footprint Name Other - SOIC127P1032X265-28N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9708ARZRL Details
-
Manufacturer Part Number:
AD9708ARZRL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
0.300 INCH, SOIC-28
-
Pin Count:
28
-
Manufacturer Package Code:
RW-28
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD9708ARZRL Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the AD9708ARZRL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the analog-to-digital converter (ADC). A 4-layer PCB with a dedicated analog ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
-
To optimize the performance of the AD9708ARZRL in a high-speed data acquisition system, ensure that the input signal is properly terminated, and the device is operated within its recommended operating conditions. Additionally, optimize the clock frequency, sampling rate, and analog input bandwidth to minimize distortion and aliasing. It's also essential to use a low-jitter clock source and to implement proper electromagnetic interference (EMI) shielding and filtering.
-
The maximum allowable input voltage range for the AD9708ARZRL is ±VREF, where VREF is the reference voltage. The device can handle input voltages up to ±2.5 V, but the input signal should be within the specified common-mode voltage range to ensure proper operation.
-
The AD9708ARZRL does not require calibration, as it is a self-calibrating device. However, it's essential to ensure that the device is properly powered, and the input signal is within the specified range. Additionally, the device's internal calibration can be initiated by asserting the CAL pin low for a minimum of 10 ns.
-
The typical power consumption of the AD9708ARZRL is 350 mW at a supply voltage of 3.3 V and a clock frequency of 65 MHz. However, the actual power consumption may vary depending on the operating conditions, clock frequency, and sampling rate.
Trust Checks
System Verified
AD9708ARZRL Overview

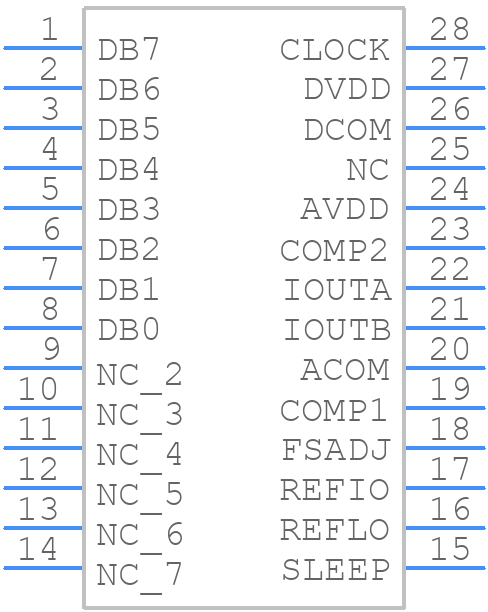

Use the download button to access the AD9708ARZRL schematic symbol, PCB footprint, and 3D model.
