The recommended PCB layout for the AD9709ASTZRL can be found in the AD9709 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9709 datasheet, which highlights key considerations for signal integrity, power supply decoupling, and thermal management.
To optimize the performance of the AD9709ASTZRL, it's essential to carefully consider the specific requirements of your application, including the signal frequency, amplitude, and impedance. Analog Devices provides a range of application notes and design tools, such as the ADIsimADC simulation tool, to help engineers optimize their designs. Additionally, consulting with Analog Devices' technical support team or seeking guidance from experienced engineers can be invaluable in achieving optimal performance.
The AD9709ASTZRL is a high-speed, high-power device that requires careful thermal management to ensure reliable operation. The device has a maximum junction temperature of 150°C, and thermal impedance of 25°C/W. To manage thermal performance, engineers should ensure good airflow around the device, use thermal vias and heat sinks as needed, and follow the recommended PCB layout guidelines. Additionally, Analog Devices provides thermal modeling tools and simulation software to help engineers predict and optimize thermal performance.
Troubleshooting common issues with the AD9709ASTZRL requires a systematic approach, starting with a thorough review of the device's datasheet and application notes. Engineers should verify that the device is properly powered, clocked, and configured, and that the PCB layout meets the recommended guidelines. Analog Devices provides a range of troubleshooting resources, including application notes, FAQs, and technical support forums, to help engineers identify and resolve common issues. Additionally, using signal analysis tools, such as oscilloscopes and spectrum analyzers, can help engineers diagnose and debug issues related to noise and distortion.
The AD9709ASTZRL is not a radiation-hardened device. However, Analog Devices offers a range of radiation-hardened ADCs, such as the AD9236RH and AD9680RH, which are designed for use in high-reliability applications, including aerospace and defense. These devices are built using radiation-hardened processes and are tested to ensure compliance with relevant standards, such as MIL-STD-883 and NASA's Electronic Parts and Packaging (EPP) program.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD9709ASTZRL Overview

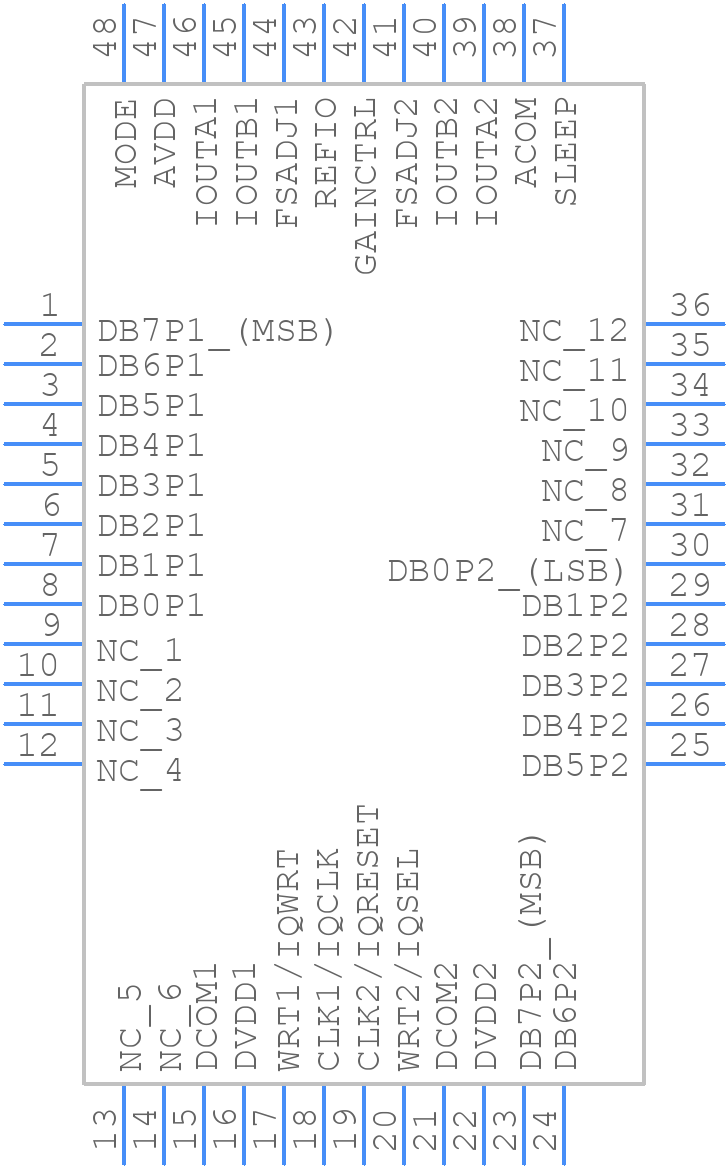

Use the download button to access the AD9709ASTZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD970,
or try a keyword search, such as Digital to Analog Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
