- Part Number AD9731BRS
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RS-28 (SSOP)
- Released Date May 14, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9731BRS Details
-
Manufacturer Part Number:
AD9731BRS
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SSOP
-
Package Description:
MO-150AH, SSOP-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Analog Output Voltage-Max:
3 V
-
Analog Output Voltage-Min:
-1.5 V
-
Converter Type:
D/A CONVERTER
AD9731BRS Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
-
To optimize the performance of the AD9731BRS, ensure that the analog input signal is properly terminated, use a high-quality clock source, and optimize the analog and digital power supply decoupling. Additionally, adjust the internal bias voltage (VBIAS) and the output common-mode voltage (VOCM) for optimal performance.
-
The AD9731BRS can support clock frequencies up to 1.2 GHz, but the maximum clock frequency may vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and application notes for more information.
-
The AD9731BRS can be interfaced with a FPGA or ASIC using a parallel or serial interface. The specific interface requirements will depend on the application and the device being used. Consult the datasheet and application notes for more information on interface timing and signal integrity.
-
The typical power consumption of the AD9731BRS is around 1.3W, but this can vary depending on the specific operating conditions, clock frequency, and output load. Consult the datasheet for more information on power consumption and thermal management.
Trust Checks
Community Provided
System Verified
Community Approved
AD9731BRS Overview

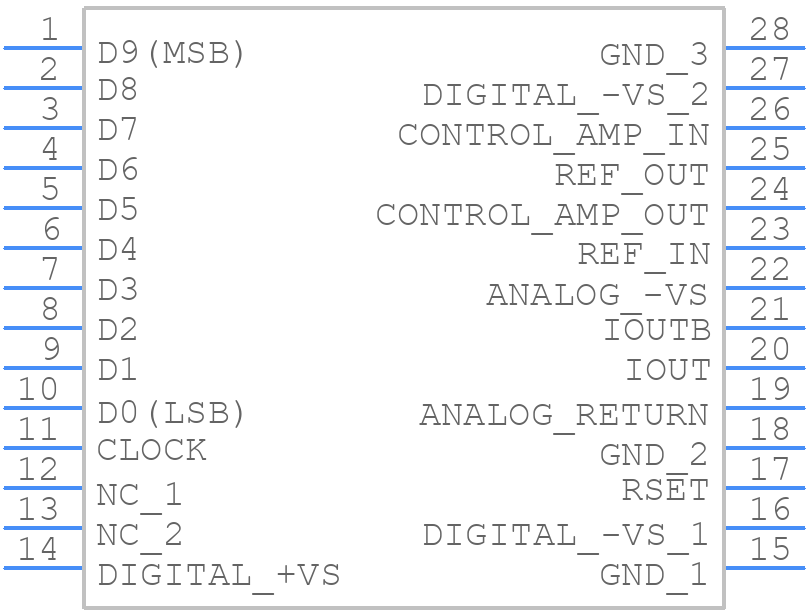

Use the download button to access the AD9731BRS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD973,
or try a keyword search, such as Digital to Analog Converters
