- Part Number AD9748ACP
- Manufacturer Analog Devices
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - (CP-32-7)
- Released Date May 14, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9748ACP Details
-
Manufacturer Part Number:
AD9748ACP
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
5 X 5 MM, MO-220VHHD-2, LFCSP-32
-
Pin Count:
32
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Analog Output Voltage-Max:
1.25 V
-
Analog Output Voltage-Min:
-1 V
-
Converter Type:
D/A CONVERTER
AD9748ACP Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
-
To optimize SFDR, ensure that the input signal is properly terminated, use a high-quality clock source, and optimize the digital filter settings. Additionally, consider using a higher sampling rate and/or increasing the number of bits in the DAC.
-
The maximum output current of the AD9748ACP is 20 mA per channel. However, it's recommended to limit the output current to 10 mA per channel to ensure reliable operation and minimize thermal issues.
-
Yes, the AD9748ACP can be used with a single supply voltage, but it's recommended to use separate supply voltages for the analog and digital sections to minimize noise and ensure optimal performance.
-
To synchronize multiple AD9748ACP devices, use a common clock source and ensure that the devices are configured to use the same sampling rate and data format. Additionally, consider using a synchronization signal, such as a frame sync signal, to ensure that the devices are aligned.
Trust Checks
Community Provided
System Verified
Community Approved
AD9748ACP Overview

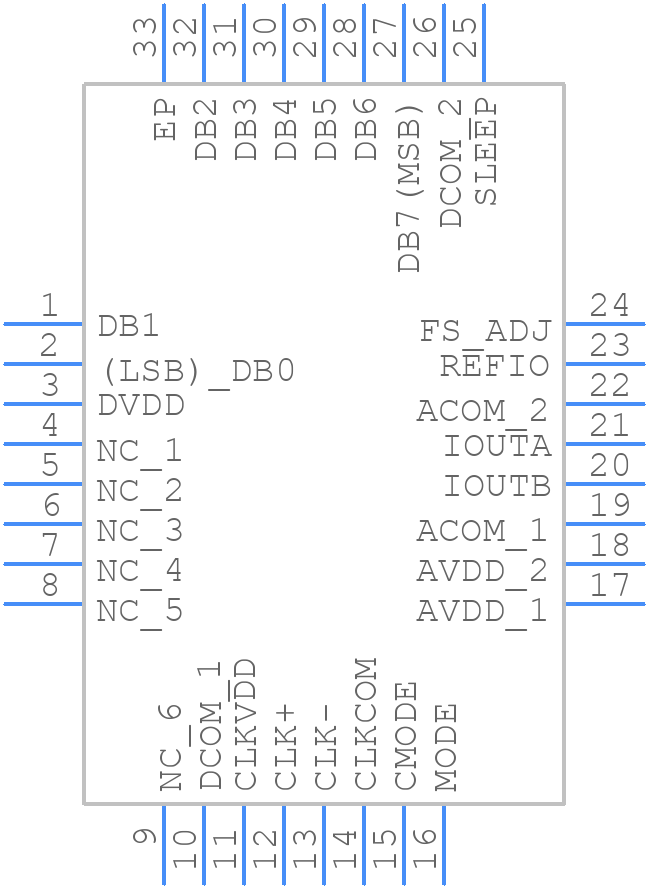

Use the download button to access the AD9748ACP schematic symbol, PCB footprint, and 3D model.
