AD9751ASTZRL - Analog Devices

Description: Digital to Analog Converters - DAC 10-Bit, 300 MSPS TxDAC+ DAC

Download AD9751ASTZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

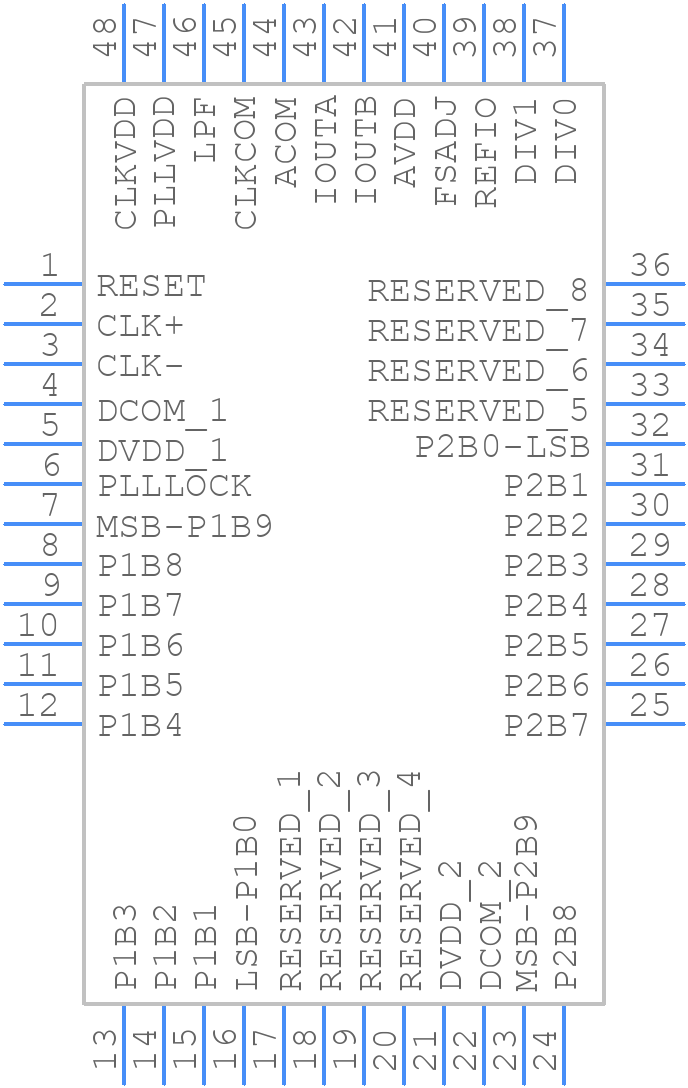

AD9751ASTZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9751ASTZRL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)_1
click to zoom
3D Models
AD9751ASTZRL - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)_1
click to zoom

AD9751ASTZRL Details

  • Manufacturer Part Number:

    AD9751ASTZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    1.40 MM HEIGHT, PLASTIC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Settling Time-Nom (tstl):

    0.011 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9751ASTZRL Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the AD9751ASTZRL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the analog-to-digital converter (ADC). Additionally, it is recommended to use a low-pass filter to reduce noise and ensure that the input signals are within the specified range.
  • To ensure accurate temperature measurement with the AD9751ASTZRL, it is essential to calibrate the device, use a high-accuracy temperature sensor, and ensure that the device is operated within the specified temperature range. Additionally, it is recommended to use a thermocouple or RTD sensor with a high-accuracy amplifier to minimize errors.
  • The maximum sampling rate of the AD9751ASTZRL is 100 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system clock frequency, the conversion time, and the settling time of the input signals.
  • The AD9751ASTZRL can be interfaced with a microcontroller using a serial peripheral interface (SPI) or an inter-integrated circuit (I2C) interface. The device requires a clock signal, a chip select signal, and data input/output lines to communicate with the microcontroller. The microcontroller can then read the converted digital data from the AD9751ASTZRL and process it accordingly.
  • The power consumption of the AD9751ASTZRL depends on the operating mode, the sampling rate, and the supply voltage. In normal operation, the device typically consumes around 15 mW of power. However, in power-down mode, the power consumption can be reduced to around 1 μW.
