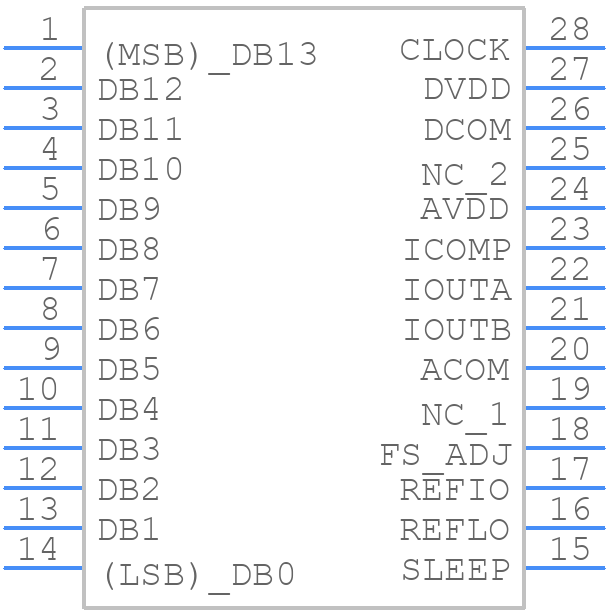

AD9754AR - Analog Devices

AD9754AR Details

• Manufacturer Part Number:

  AD9754AR

• Source Url Status Check Date:

  2013-05-01 14:56:31.912

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  0.300 INCH, SOIC-28

• Pin Count:

  28

• Manufacturer Package Code:

  RW-28

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Analog Output Voltage-Max:

  1.25 V

• Analog Output Voltage-Min:

  -1 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY

• Input Format:

  PARALLEL, WORD

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e0

• Length:

  17.9 mm

• Linearity Error-Max (EL):

  0.0183%

• Moisture Sensitivity Level:

  1

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Settling Time-Nom (tstl):

  0.035 µs

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
