- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9764ARZRL
- Part Number AD9764ARZRL
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P1032X265-28N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9764ARZRL Details
-
Manufacturer Part Number:
AD9764ARZRL
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOIC-28
-
Pin Count:
28
-
Manufacturer Package Code:
RW-28
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD9764ARZRL Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the AD9764ARZRL is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signal traces separate. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to decouple the VDD pin with a 0.1uF capacitor.
-
To optimize the performance of the AD9764ARZRL in a high-frequency application, it's recommended to use a low-jitter clock source, to minimize the length of the clock signal traces, and to use a shielded cable for the clock signal. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to decouple the VDD pin with a 0.1uF capacitor.
-
The maximum operating temperature range for the AD9764ARZRL is -40°C to +125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
-
The AD9764ARZRL can be programmed using a serial interface. The device has a 16-bit register that can be programmed to configure the device for a specific application. The programming sequence and register map are provided in the datasheet.
-
The typical power consumption of the AD9764ARZRL is 350mW at a supply voltage of 3.3V and a clock frequency of 100MHz. However, the actual power consumption may vary depending on the specific application and operating conditions.
Trust Checks
System Verified
AD9764ARZRL Overview

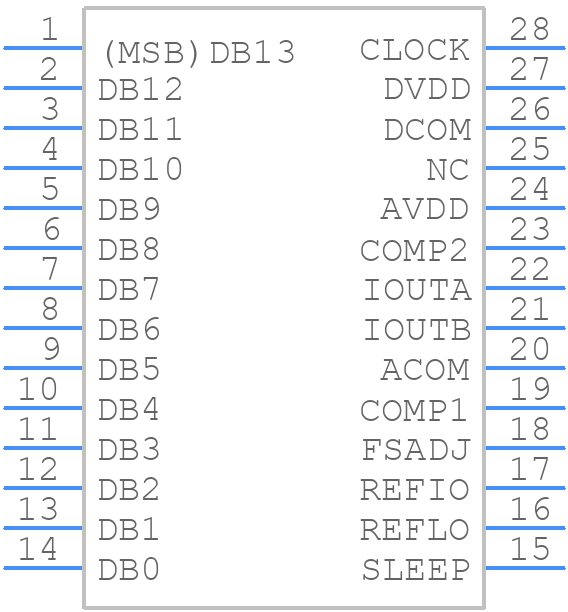

Use the download button to access the AD9764ARZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD976,
or try a keyword search, such as Digital to Analog Converters
