AD9779ABSVZ - Analog Devices

Description: AD9779ABSVZ, 16 bit-Bit DAC Dual, 1Gsps, Parallel, 100-Pin TQFP EP

Download AD9779ABSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9779ABSVZ - Analog Devices - PCB symbol
click to zoom

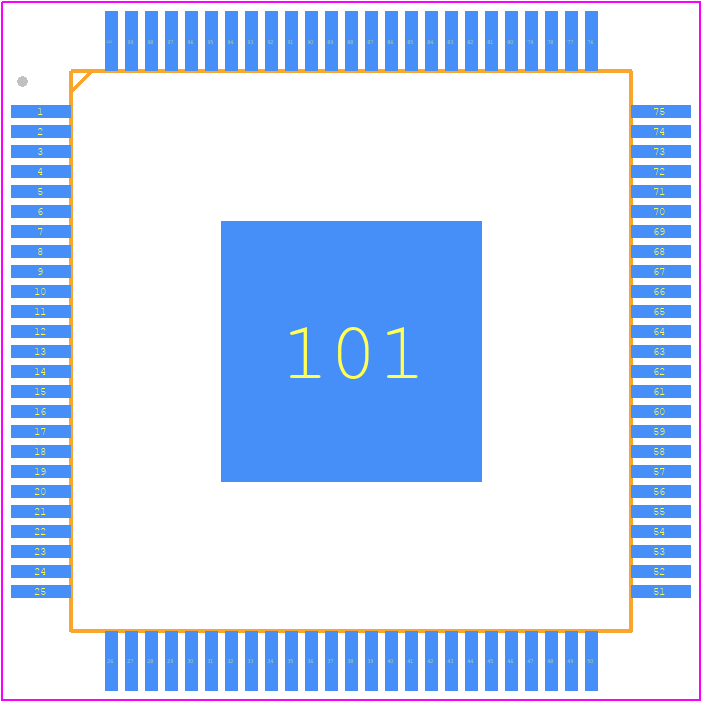

PCB Footprints
AD9779ABSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-100-1 (TQFP)
click to zoom
3D Models
AD9779ABSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-100-1 (TQFP)
click to zoom

AD9779ABSVZ Details

  • Manufacturer Part Number:

    AD9779ABSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, MS-026AED-HD, TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    SV-100-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Linearity Error-Max (EL):

    0.0056%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP100,.63SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

AD9779ABSVZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and AVSS) first, followed by the digital power supplies (DVDD and DVSS). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize the performance of the ADC, ensure that the analog input signal is properly filtered and buffered, and that the reference voltage is stable and accurate. Additionally, optimize the ADC's clock frequency and ensure that the digital output data is properly synchronized with the clock signal.
  • The maximum clock frequency that can be used with the AD9779 is 65 MHz. However, the actual clock frequency used may be limited by the specific application and the performance requirements of the system.
  • The AD9779 can be interfaced with a microcontroller or FPGA using a parallel or serial interface. The specific interface used will depend on the requirements of the system and the capabilities of the microcontroller or FPGA. The AD9779's digital output data can be connected directly to the microcontroller or FPGA's digital input pins.
  • The internal voltage reference is used to generate a stable voltage reference for the ADC. This reference voltage is used to determine the full-scale range of the ADC and to provide a stable voltage reference for the analog input signal.
