AD9785BSVZ - Analog Devices

Description: Dual 12-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO

Download AD9785BSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9785BSVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

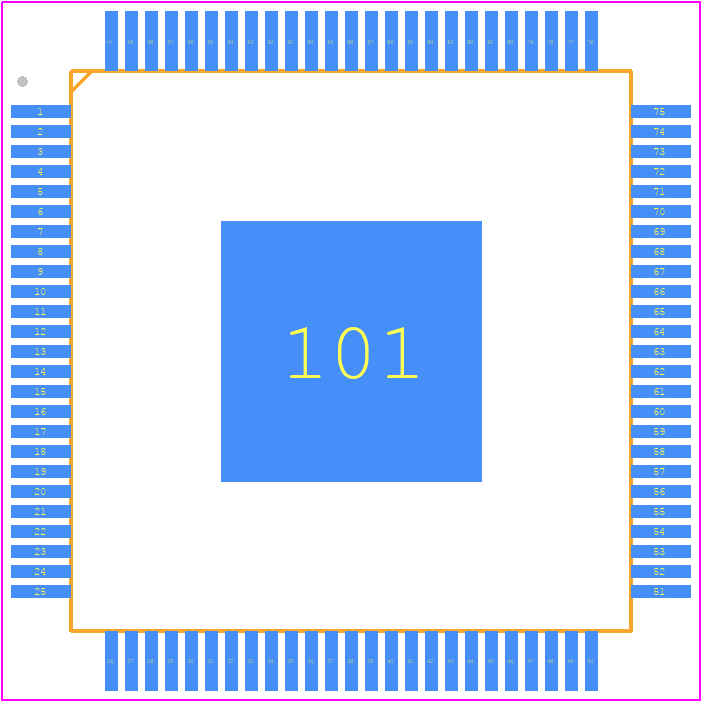

AD9785BSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-100-1 (TQFP)
click to zoom
3D Models
AD9785BSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-100-1 (TQFP)
click to zoom

AD9785BSVZ Details

  • Manufacturer Part Number:

    AD9785BSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    SV-100-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    DAC 12BIT

  • Input Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Linearity Error-Max (EL):

    0.007%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    FL100,.6,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    0.02 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

AD9785BSVZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog supply voltage (AVDD) first, followed by the digital supply voltage (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To optimize performance, ensure that the device is properly decoupled, use a low-noise power supply, and minimize digital noise coupling into the analog circuitry. Additionally, use a clock signal with low jitter and ensure that the analog input signals are properly filtered and terminated.
  • The AD9785BSVZ can support clock frequencies up to 1.25 GHz, but the maximum frequency may vary depending on the specific application and system requirements.
  • The AD9785BSVZ can be configured for different data formats using the device's control registers. Consult the datasheet and programming guide for specific details on configuring the device for different data formats.
  • The typical power consumption of the AD9785BSVZ varies depending on the operating frequency, data rate, and other factors. However, the typical power consumption is around 1.5 W at 1.25 Gbps, with a maximum power consumption of around 2.5 W.
