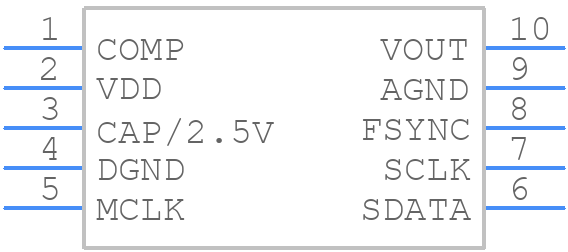

AD9833BRM-REEL - Analog Devices

AD9833BRM-REEL Details

• Manufacturer Part Number:

  AD9833BRM-REEL

• Source Url Status Check Date:

  2013-05-01 14:56:32.398

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  MO-187BA, MSOP-10

• Pin Count:

  10

• Manufacturer Package Code:

  RM-10

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Boundary Scan:

  NO

• Clock Frequency-Max:

  25 MHz

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PDSO-G10

• JESD-609 Code:

  e0

• Length:

  3 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Data Bus Width:

  1

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP10,.19,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  5.5 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.3 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  3 mm

• uPs/uCs/Peripheral ICs Type:

  DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR
