AD9837ACPZ-RL - Analog Devices

Description: Direct Digital Synthesizer 5MHz 1-DAC 10bit Serial 10-Pin LFCSP EP T/R

Download AD9837ACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

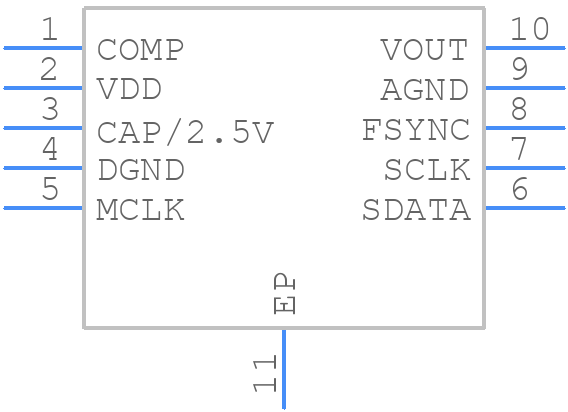

AD9837ACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9837ACPZ-RL - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom
3D Models
AD9837ACPZ-RL - Analog Devices - 3D model - Small Outline No-lead - CP-10-9 (LFCSP)
click to zoom

AD9837ACPZ-RL Details

  • Manufacturer Part Number:

    AD9837ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINE; SQUARE; TRIANGULAR

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max (Isup):

    5.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD9837ACPZ-RL Frequently Asked Questions (FAQs)

  • The maximum frequency deviation of the AD9837 is ±10% of the selected frequency, which is sufficient for most applications. However, if a larger deviation is required, an external voltage-controlled oscillator (VCO) can be used.
  • The AD9837 has a SYNC_IN pin that can be used to synchronize the internal clock with an external clock. The SYNC_IN pin is sampled on the rising edge of the clock signal, and the internal clock is reset to zero when the SYNC_IN pin is high.
  • The minimum frequency that can be generated by the AD9837 is 0.1 Hz, and the maximum frequency is 12.5 MHz. However, the frequency range can be extended using external components and programming.
  • The AD9837 can be programmed to generate a specific waveform using the SPI interface. The waveform is defined by a set of 14-bit frequency and phase registers that are loaded into the device using the SPI interface.
  • The power consumption of the AD9837 depends on the operating frequency and the output load. The typical power consumption is around 30 mA at 3.3 V supply voltage, but it can be as low as 10 mA in low-power mode.
