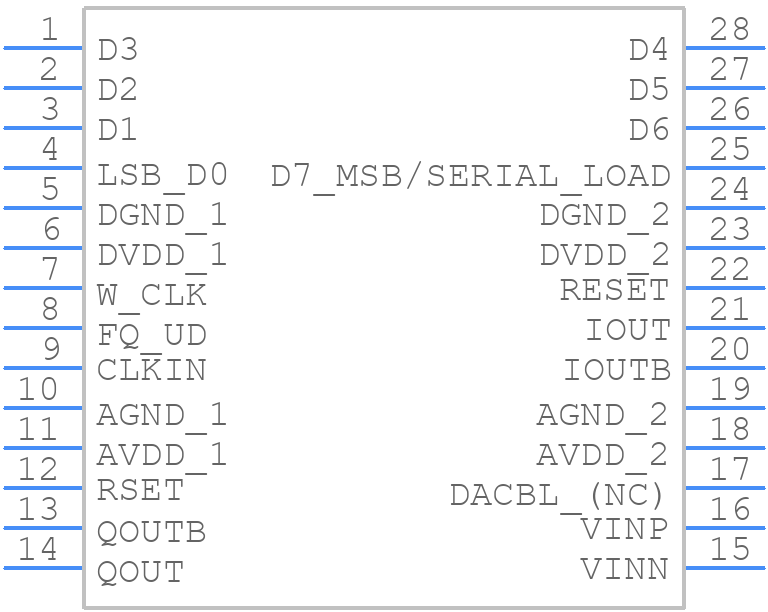

AD9850BRS-REEL - Analog Devices

AD9850BRS-REEL Details

• Manufacturer Part Number:

  AD9850BRS-REEL

• Source Url Status Check Date:

  2013-05-01 14:56:32.542

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

  MO-150AH, SSOP-28

• Pin Count:

  28

• Manufacturer Package Code:

  RS-28

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Boundary Scan:

  NO

• Clock Frequency-Max:

  125 MHz

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e0

• Length:

  10.2 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2 mm

• Supply Current-Max:

  96 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm

• uPs/uCs/Peripheral ICs Type:

  DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR
