AD9850BRSZ-REEL - Analog Devices

Description: Direct Digital Synthesizer 125MHz 1-DAC 10bit Parallel/Serial 28-Pin SSOP T/R

Download AD9850BRSZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

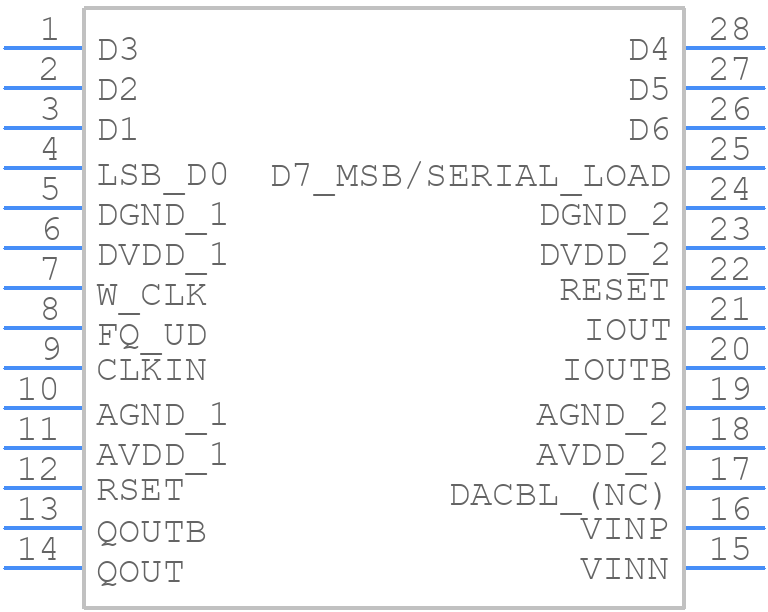

Symbol
AD9850BRSZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9850BRSZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Pin SSOP_2020
click to zoom
3D Models
AD9850BRSZ-REEL - Analog Devices - 3D model - Small Outline Packages - 28-Pin SSOP_2020
click to zoom

AD9850BRSZ-REEL Details

  • Manufacturer Part Number:

    AD9850BRSZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    LEAD FREE, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    125 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    96 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR

AD9850BRSZ-REEL Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9850 is 125 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • To synchronize multiple AD9850 devices, you can use the SYNC_IN pin to synchronize the devices. The SYNC_IN pin is used to synchronize the internal clock of the AD9850 with an external clock signal. You can also use the SYNC_OUT pin to synchronize multiple devices.
  • The maximum amplitude modulation frequency that can be achieved with the AD9850 is approximately 10 MHz. However, the actual modulation frequency may vary depending on the specific application and the quality of the modulation signal.
  • To implement frequency hopping with the AD9850, you can use the frequency tuning word (FTW) to change the output frequency of the device. The FTW is a 32-bit word that determines the output frequency of the AD9850. You can use an external microcontroller to generate the FTW and load it into the AD9850 to implement frequency hopping.
  • The phase noise performance of the AD9850 is typically -120 dBc/Hz at 10 kHz offset from the carrier frequency. However, the actual phase noise performance may vary depending on the specific application and the quality of the clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9850BRSZ-REEL Overview

Use the download button to access the AD9850BRSZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD985, or try a keyword search, such as DSP Peripherals

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
