AD9850BRSZ - Analog Devices

Description: AD9850BRSZ, Direct Digital Synthesizer 10 bit-Bit 125000ksps, 28-Pin SSOP

Download AD9850BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

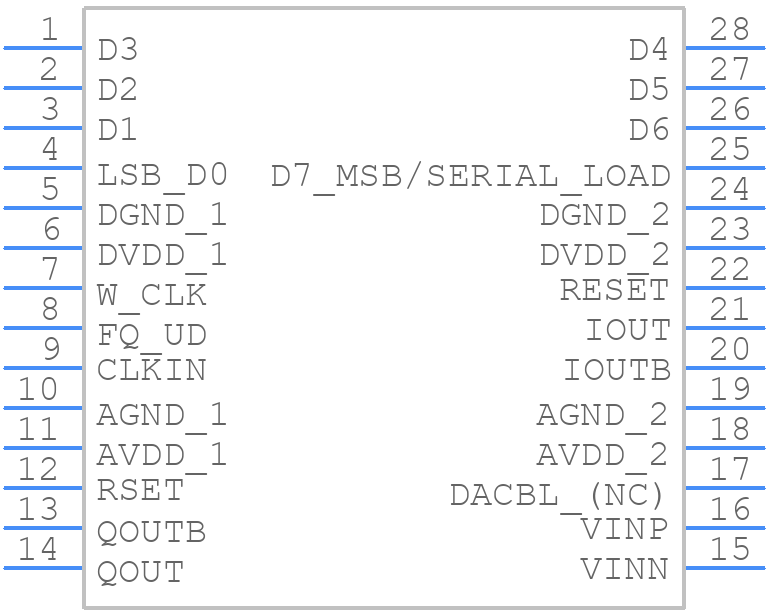

AD9850BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9850BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Pin SSOP_2020
click to zoom
3D Models
AD9850BRSZ - Analog Devices - 3D model - Small Outline Packages - 28-Pin SSOP_2020
click to zoom

AD9850BRSZ Details

  • Manufacturer Part Number:

    AD9850BRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    LEAD FREE, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    125 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    96 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR

AD9850BRSZ Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9850 is 125 MHz. However, the maximum clock frequency that can be used while maintaining a stable output frequency is typically around 100 MHz.
  • To ensure a stable output frequency, make sure to follow the recommended power-up sequence, use a stable clock source, and ensure that the device is properly bypassed and decoupled. Additionally, the output frequency should be set to a value that is within the device's specified frequency range.
  • The maximum output frequency of the AD9850 is 40 MHz. However, the device can be used to generate frequencies up to 60 MHz, but with reduced performance and increased phase noise.
  • The AD9850 can be programmed to generate a specific output frequency by loading the desired frequency value into the device's frequency tuning word (FTW) register. The FTW register is a 32-bit register that determines the output frequency of the device.
  • The phase noise performance of the AD9850 is typically around -120 dBc/Hz at 10 kHz offset from the carrier frequency. However, this can vary depending on the specific application and operating conditions.
