AD9851BRS - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized 180 MHz Complete DDS Synthesizer

Download AD9851BRS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

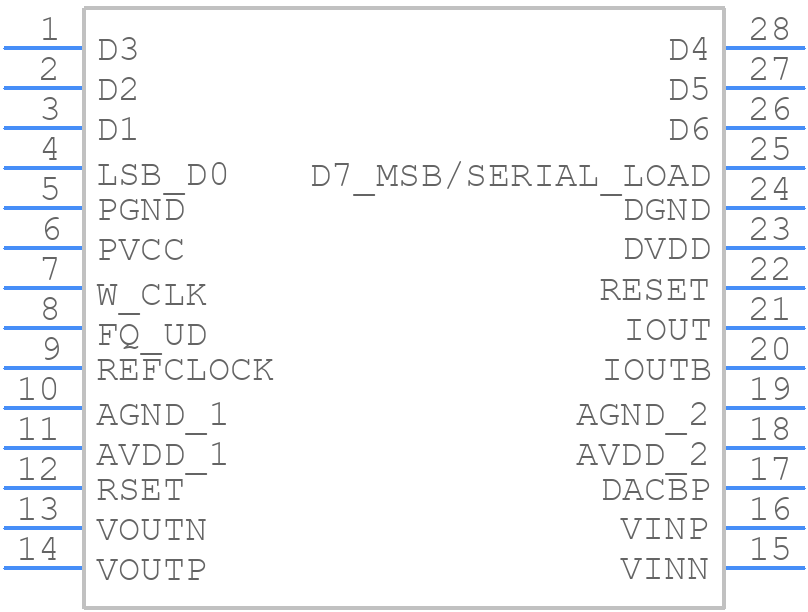

AD9851BRS - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9851BRS - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)
click to zoom
3D Models
AD9851BRS - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)
click to zoom

AD9851BRS Details

  • Manufacturer Part Number:

    AD9851BRS

  • Source Url Status Check Date:

    2013-05-01 14:56:32.544

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ULTRA SMALL, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9851BRS Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9851BRS is 125 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The AD9851BRS can be programmed to generate a specific frequency by loading the desired frequency value into the device's frequency tuning word (FTW) register. The FTW register is a 32-bit register that determines the output frequency of the DDS. The frequency tuning word is calculated using the formula: FTW = (desired frequency / clock frequency) x 2^32.
  • The phase noise performance of the AD9851BRS is typically -120 dBc/Hz at 10 kHz offset from the carrier frequency. However, the actual phase noise performance may vary depending on the specific application and the quality of the clock signal.
  • Yes, the AD9851BRS can be used to generate a modulated signal. The device has a built-in modulation capability that allows the output frequency to be modulated by an external signal. The modulation input can be connected to an external voltage-controlled oscillator (VCO) or a digital-to-analog converter (DAC) to generate a modulated signal.
  • The power consumption of the AD9851BRS is typically 350 mW at 3.3 V supply voltage. However, the actual power consumption may vary depending on the specific application and the operating frequency.
