AD9851BRSRL - Analog Devices

Description: Direct Digital Synthesizer 180MHz 1-DAC 10bit Parallel/Serial 28-Pin SSOP T/R

Download AD9851BRSRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

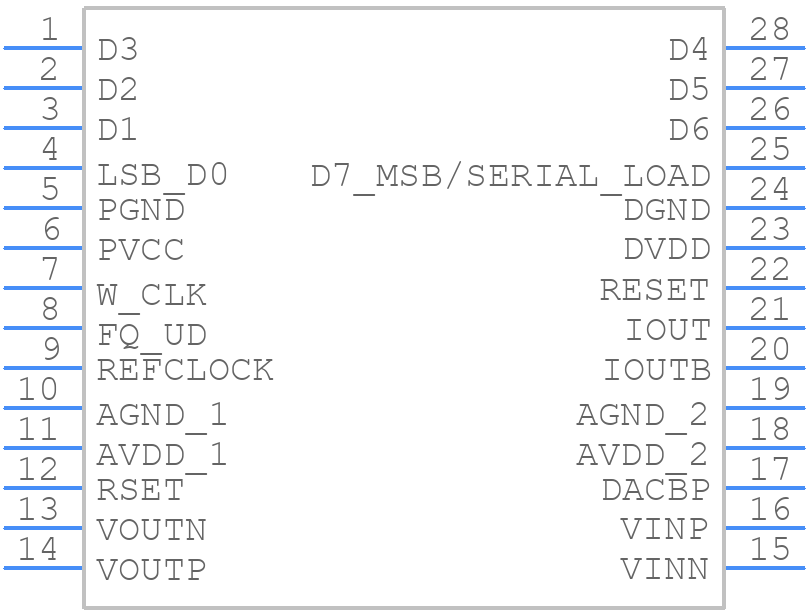

AD9851BRSRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9851BRSRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)
click to zoom
3D Models
AD9851BRSRL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)
click to zoom

AD9851BRSRL Details

  • Manufacturer Part Number:

    AD9851BRSRL

  • Source Url Status Check Date:

    2013-05-01 14:56:32.544

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ULTRA SMALL, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9851BRSRL Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9851BRSRL is 300 MHz. However, the device can be clocked up to 1.4 GHz with an external clock doubler.
  • To ensure a stable output frequency, make sure that the clock input is stable and within the specified frequency range. Also, ensure that the device is properly powered and that the power supply is decoupled. Additionally, use a low-jitter clock source and consider using a clock jitter cleaner if necessary.
  • The minimum frequency step size that can be achieved with the AD9851BRSRL is 0.0291 Hz, which is determined by the 32-bit frequency tuning word and the clock frequency.
  • To program the AD9851BRSRL to generate a specific frequency, calculate the 32-bit frequency tuning word using the formula provided in the datasheet, and then write the tuning word to the device's registers using a serial interface such as SPI or I2C.
  • The typical phase noise performance of the AD9851BRSRL is -120 dBc/Hz at 1 kHz offset from the carrier frequency, and -140 dBc/Hz at 10 kHz offset. However, this can vary depending on the clock frequency, power supply, and other factors.
