AD9851BRSZ - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized DDS CLOCK DRIVER

Download AD9851BRSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

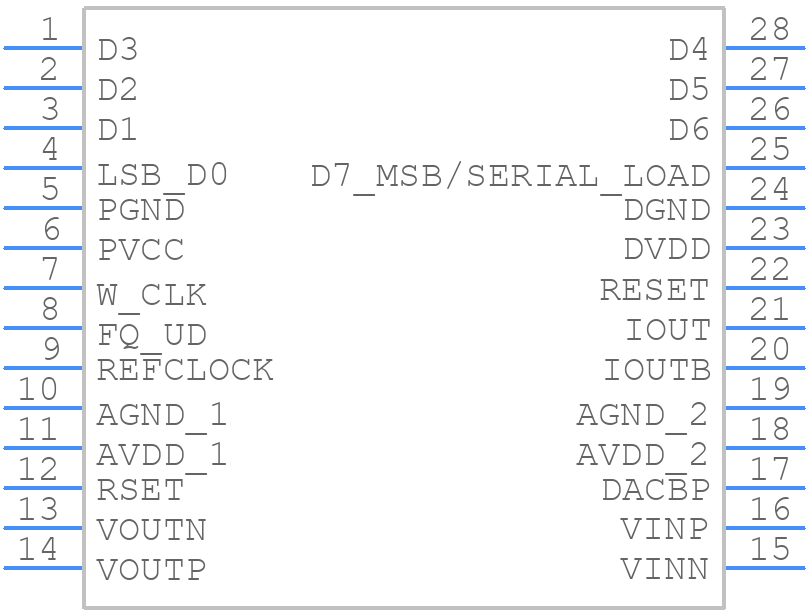

AD9851BRSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9851BRSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ssop
click to zoom
3D Models
AD9851BRSZ - Analog Devices - 3D model - Small Outline Packages - ssop
click to zoom

AD9851BRSZ Details

  • Manufacturer Part Number:

    AD9851BRSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ULTRA SMALL, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9851BRSZ Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9851BRSZ is 125 MHz. However, the actual clock frequency used will depend on the specific application and the desired output frequency.
  • The AD9851BRSZ can be programmed to generate a specific frequency by loading a 32-bit frequency tuning word into the device's frequency register. The frequency tuning word is calculated based on the desired output frequency, the clock frequency, and the phase accumulator size.
  • The phase noise performance of the AD9851BRSZ is typically -120 dBc/Hz at 10 kHz offset from the carrier frequency. However, the actual phase noise performance will depend on the specific application, clock frequency, and output frequency.
  • Yes, the AD9851BRSZ can be used to generate a modulated output signal. The device has a built-in modulation capability that allows for amplitude, frequency, or phase modulation of the output signal.
  • The output power of the AD9851BRSZ is typically +10 dBm into a 50 ohm load. However, the actual output power will depend on the specific application and the load impedance.
