AD9851BRSZRL - Analog Devices

Description: Direct Digital Synthesizer 180MHz 1-DAC 10bit Parallel/Serial 28-Pin SSOP T/R

Download AD9851BRSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

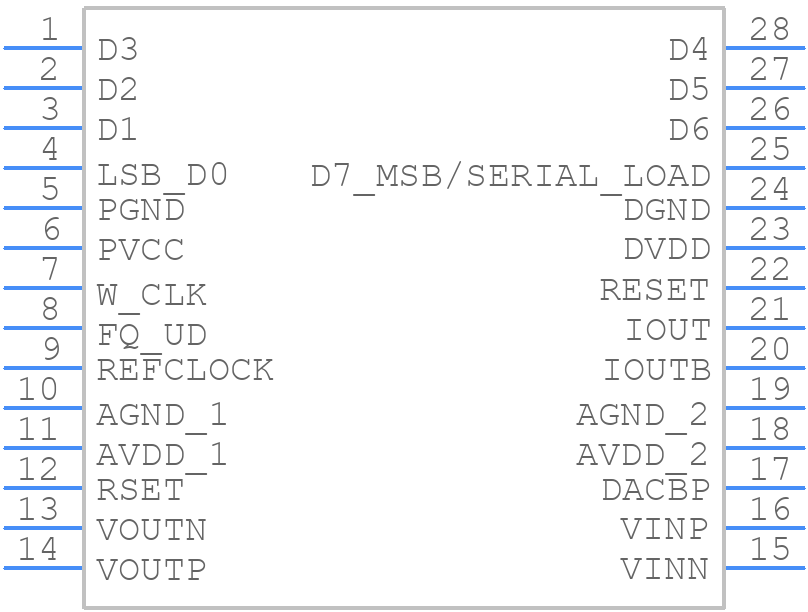

AD9851BRSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9851BRSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)
click to zoom
3D Models
AD9851BRSZRL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)
click to zoom

AD9851BRSZRL Details

  • Manufacturer Part Number:

    AD9851BRSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ULTRA SMALL, MO-150AH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD9851BRSZRL Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9851BRSZRL is 125 MHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal.
  • To ensure a stable output frequency, make sure to use a high-quality clock source, decouple the power supply lines, and use a stable voltage reference. Additionally, ensure that the device is operated within its specified temperature range and that the output load is within the recommended specifications.
  • The typical settling time of the AD9851BRSZRL is around 20-30 clock cycles, depending on the frequency of operation and the specific application. This settling time can be affected by factors such as the clock frequency, output frequency, and load capacitance.
  • Yes, the AD9851BRSZRL can be used in a multi-chip module (MCM) or system-in-package (SiP) design. However, careful attention must be paid to the thermal management, power supply decoupling, and signal integrity in such designs.
  • The AD9851BRSZRL can be programmed to generate a specific frequency using a 32-bit frequency tuning word (FTW). The FTW is calculated based on the desired frequency, clock frequency, and other parameters. The device also has a phase accumulator that can be used to generate a specific phase offset.
