AD9852ASVZ - Analog Devices

Description: AD9852ASVZ, Direct Digital Synthesizer 12-Bit 300000ksps, 80-Pin TQFP EP

Download AD9852ASVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9852ASVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

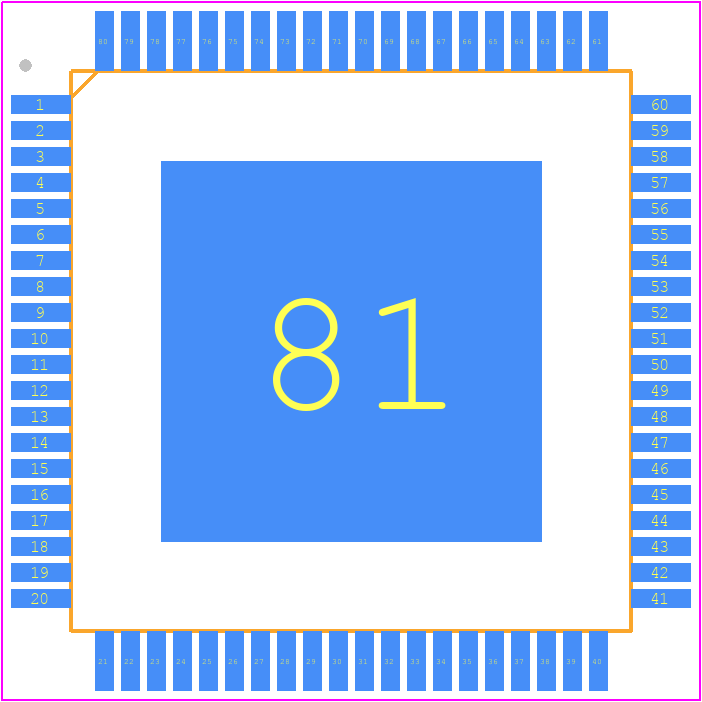

AD9852ASVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (SV-80-4)
click to zoom
3D Models
AD9852ASVZ - Analog Devices - 3D model - Quad Flat Packages - (SV-80-4)
click to zoom

AD9852ASVZ Details

  • Manufacturer Part Number:

    AD9852ASVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, MS-026AEC-HD, TQFP-80

  • Pin Count:

    80

  • Manufacturer Package Code:

    SV-80-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTQFP

  • Package Equivalence Code:

    TQFP80,.63SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

AD9852ASVZ Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9852ASVZ is 125 MHz. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal.
  • The AD9852ASVZ can be programmed to generate a specific frequency by loading the desired frequency value into the device's frequency tuning word (FTW) register. The FTW register is a 32-bit register that determines the output frequency of the DDS. The frequency tuning word is calculated using the formula: FTW = (desired frequency / clock frequency) x 2^32.
  • The phase noise performance of the AD9852ASVZ is typically -120 dBc/Hz at 1 kHz offset from the carrier frequency. However, the actual phase noise performance may vary depending on the specific application and the quality of the clock signal.
  • Yes, the AD9852ASVZ can be used to generate a modulated signal. The device has a built-in 10-bit amplitude modulation (AM) and 12-bit phase modulation (PM) capabilities. The modulation data can be loaded into the device's modulation registers to generate a modulated output signal.
  • The power consumption of the AD9852ASVZ is typically 350 mW at 3.3 V supply voltage. However, the actual power consumption may vary depending on the specific application and the clock frequency used.
