AD9858BSVZ - Analog Devices

AD9858BSVZ Details

• Manufacturer Part Number:

  AD9858BSVZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

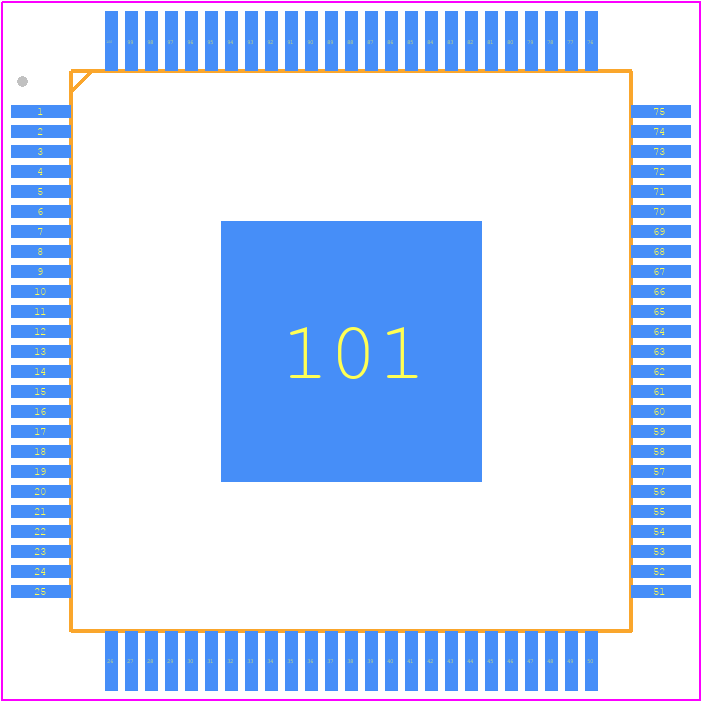

• Part Package Code:

  QFP

• Package Description:

  ROHS COMPLIANT, PLASTIC, MS-026AED-HD, TQFP-100

• Pin Count:

  100

• Manufacturer Package Code:

  SV-100-1

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Boundary Scan:

  NO

• Clock Frequency-Max:

  2000 MHz

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQFP-G100

• JESD-609 Code:

  e3

• Length:

  14 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  3.465 V

• Supply Voltage-Min:

  3.135 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR
