AD9859YSVZ - Analog Devices

Description: AD9859YSVZ, Direct Digital Synthesizer 10-Bit 400000ksps, 48-Pin TQFP EP

Download AD9859YSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

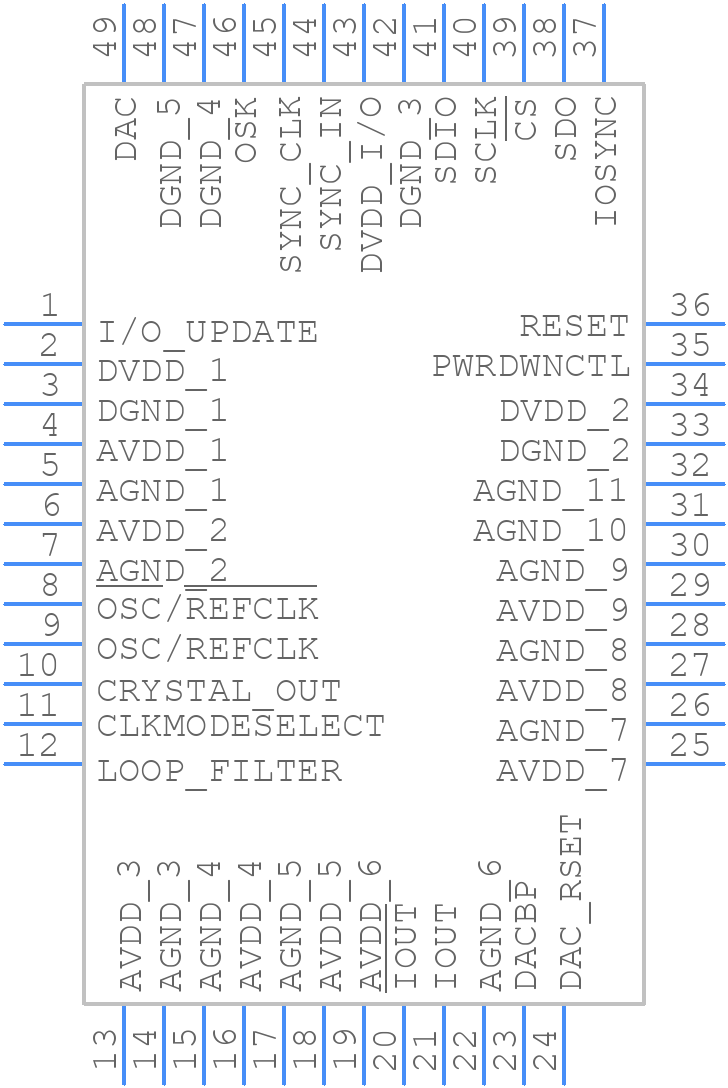

AD9859YSVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9859YSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-48-4
click to zoom
3D Models
AD9859YSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-48-4
click to zoom

AD9859YSVZ Details

  • Manufacturer Part Number:

    AD9859YSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    QFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SV-48-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    400 MHz

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR

AD9859YSVZ Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9859YSVZ is 1.4 GHz. However, the actual clock frequency used may be limited by the specific application and system requirements.
  • The AD9859YSVZ can be programmed to generate a specific frequency using the 32-bit FTW (Frequency Tuning Word) register. The FTW register is calculated using the desired frequency, clock frequency, and a scaling factor. The formula to calculate the FTW is provided in the datasheet.
  • The phase noise performance of the AD9859YSVZ is typically -120 dBc/Hz at 10 kHz offset from the carrier frequency. However, the actual phase noise performance may vary depending on the specific application and system requirements.
  • Yes, the AD9859YSVZ can be used in a multi-chip module (MCM) or system-in-package (SiP) design. However, careful consideration must be given to the thermal management, power distribution, and signal integrity in such designs.
  • The power consumption of the AD9859YSVZ varies depending on the clock frequency, output frequency, and other factors. The typical power consumption is around 350 mW at 1.2 V supply voltage and 1.4 GHz clock frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9859YSVZ Overview

Use the download button to access the AD9859YSVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD985, or try a keyword search, such as DSP Peripherals

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
