AD9910BSVZ-REEL - Analog Devices

Description: Direct Digital Synthesizer 1000MHz 1-DAC 14bit Parallel/Serial 100-Pin TQFP EP T/R

Download AD9910BSVZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9910BSVZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

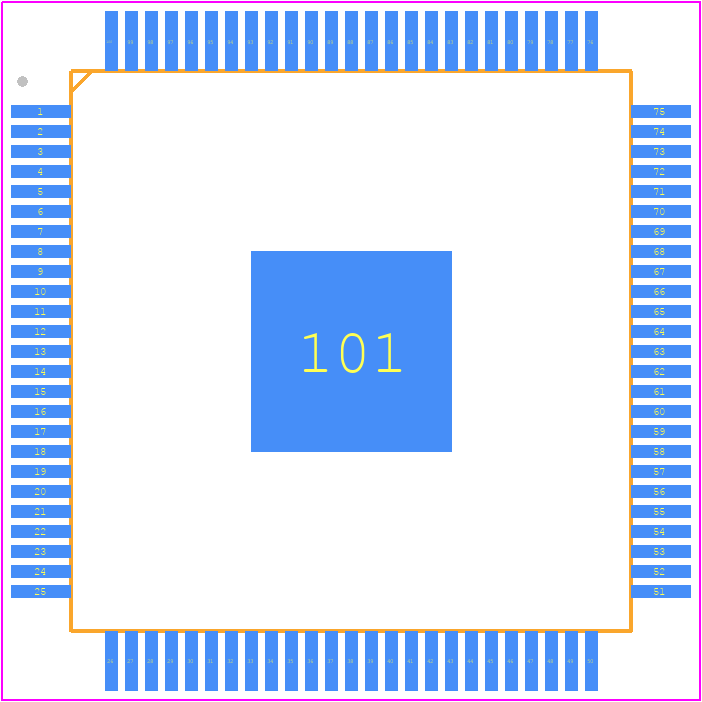

AD9910BSVZ-REEL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 100-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP].
click to zoom
3D Models
AD9910BSVZ-REEL - Analog Devices - 3D model - Quad Flat Packages - 100-Lead Thin Quad Flat Package, Exposed Pad [TQFP_EP].
click to zoom

AD9910BSVZ-REEL Details

  • Manufacturer Part Number:

    AD9910BSVZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    SV-100-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL, PARALLEL, WORD

  • JESD-30 Code:

    S-PDSO-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    14 mm

AD9910BSVZ-REEL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane, separate analog and digital power planes, and a careful routing of sensitive signals is recommended. Additionally, decoupling capacitors should be placed close to the device pins.
  • The AD9910BSVZ-REEL requires a calibration process to ensure optimal performance. This involves setting the internal voltage reference, calibrating the DAC, and adjusting the clock phase. Refer to the device's calibration procedure in the datasheet or application notes.
  • The maximum clock frequency for the AD9910BSVZ-REEL is 1.4 GHz. However, the actual clock frequency used may be limited by the specific application and system requirements.
  • Synchronization can be achieved by using a common clock source and ensuring that all devices are configured to use the same clock frequency and phase. Additionally, the SYNC_IN pin can be used to synchronize the devices.
  • The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
