AD9913BCPZ-REEL7 - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialised Sub 50mW 250MSPS (+) 10-bit DDS

Download AD9913BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

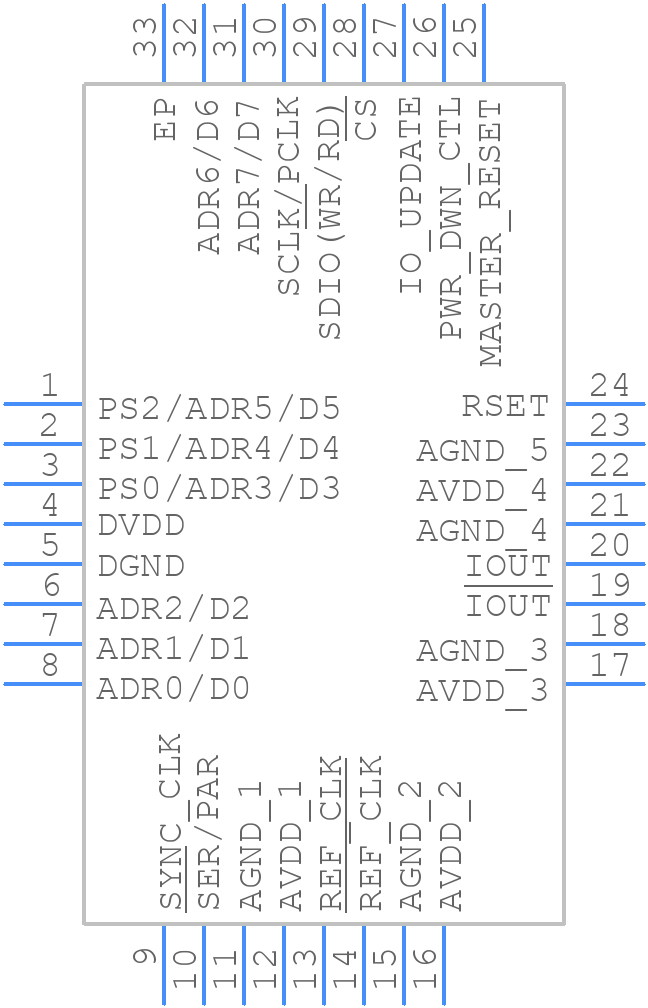

AD9913BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9913BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)
click to zoom
3D Models
AD9913BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)
click to zoom

AD9913BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD9913BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0488%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    46.5 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD9913BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9913 is 1.4 GHz. However, the device can also be used with lower clock frequencies, and the maximum output frequency will depend on the clock frequency and the PLL settings.
  • The PLL loop filter for the AD9913 should be optimized based on the specific application requirements. A good starting point is to use the recommended values in the datasheet, and then adjust the values based on the measured phase noise and spurious performance. It's also important to consider the trade-off between phase noise and spurious performance.
  • The maximum amplitude modulation frequency that can be achieved with the AD9913 is limited by the DAC update rate, which is 2.4 GS/s. This means that the maximum amplitude modulation frequency is approximately 1.2 GHz.
  • To synchronize multiple AD9913 devices, you can use the SYNC_IN and SYNC_OUT pins to synchronize the devices. The SYNC_IN pin is used to input a synchronization signal, and the SYNC_OUT pin is used to output a synchronization signal. You can also use an external clock source to synchronize the devices.
  • The typical power consumption of the AD9913 is approximately 1.6 W at 1.8 V supply voltage and 1.2 W at 1.2 V supply voltage. However, the actual power consumption will depend on the specific application and the clock frequency used.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9913BCPZ-REEL7 Overview

Use the download button to access the AD9913BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD991, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
