AD9952YSV - Analog Devices

Description: AD9952YSV Analog Devices, Comparator,

Download AD9952YSV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

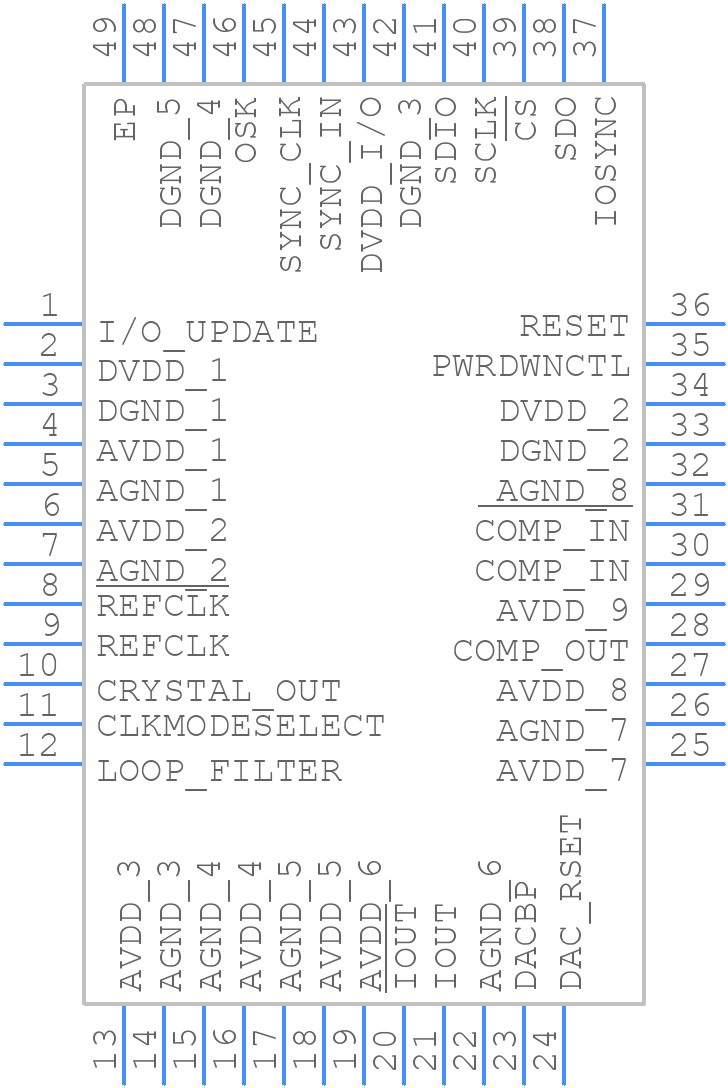

AD9952YSV - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9952YSV - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-48-4
click to zoom
3D Models
AD9952YSV - Analog Devices - 3D model - Quad Flat Packages - SV-48-4
click to zoom

AD9952YSV Details

  • Manufacturer Part Number:

    AD9952YSV

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    EXPOSED PAD, PLASTIC, MS-026ABC, TQFP-48

  • Pin Count:

    48

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    400 MHz

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e0

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR

AD9952YSV Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance, ensure that the device is operated within the recommended operating conditions, use a high-quality clock source, and optimize the loop filter components. Additionally, consider using a shielded enclosure and minimizing noise coupling to the device.
  • The maximum frequency deviation depends on the clock frequency and the modulation mode. In general, the AD9952YSV can achieve frequency deviations up to ±100 kHz at a clock frequency of 100 MHz.
  • Frequency hopping can be implemented by using the device's built-in frequency modulation capabilities. The frequency hop rate is limited by the device's settling time, which is typically around 100 ns. The frequency hop sequence can be programmed using the device's serial interface.
  • The maximum output power of the AD9952YSV is +10 dBm, but this can be reduced by adjusting the output attenuation settings. The output power can also be limited by the external load impedance and the device's thermal characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9952YSV Overview

Use the download button to access the AD9952YSV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD995, or try a keyword search, such as DSP Peripherals

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
