AD9952YSVZ - Analog Devices

Description: AD9952YSVZ, Direct Digital Synthesizer 14-Bit 400000ksps, 48-Pin TQFP EP

Download AD9952YSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

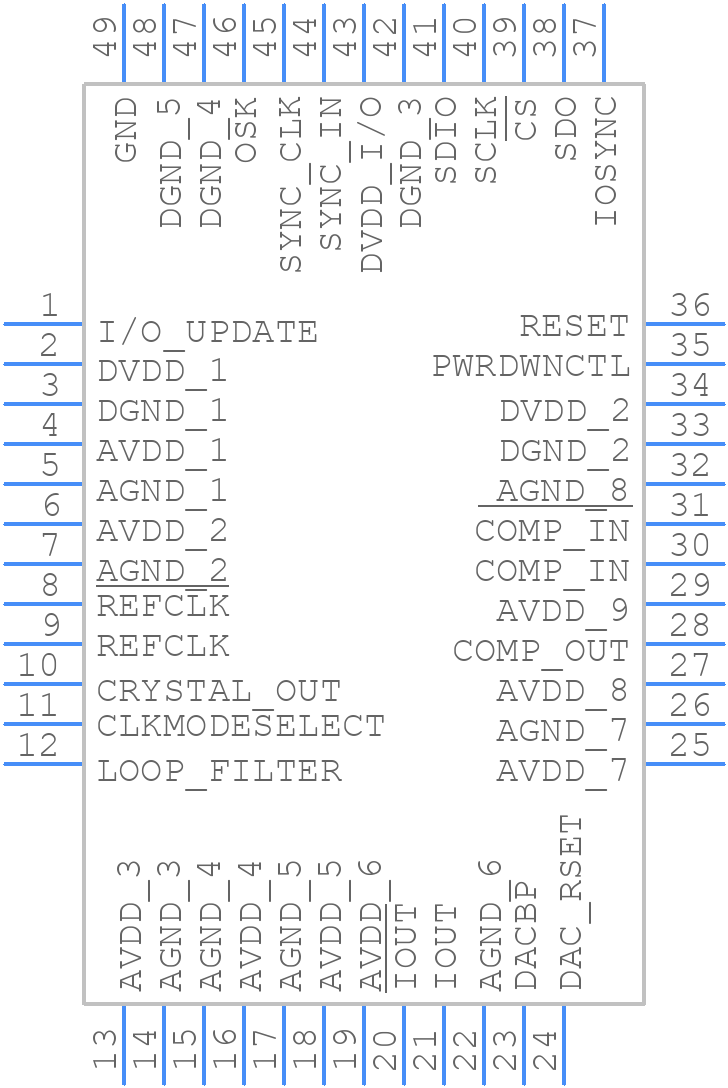

AD9952YSVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9952YSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-48-4
click to zoom
3D Models
AD9952YSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-48-4
click to zoom

AD9952YSVZ Details

  • Manufacturer Part Number:

    AD9952YSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SV-48-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    400 MHz

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR

AD9952YSVZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To optimize phase noise performance, ensure that the device is operated at the recommended supply voltage, and that the power supply is well-regulated and low-noise. Additionally, use a high-quality clock source and ensure that the device is properly shielded from electromagnetic interference.
  • The maximum frequency of the clock input that the AD9952YSVZ can handle is 1.4 GHz. However, the device can be configured to operate at higher frequencies using the internal PLL.
  • The AD9952YSVZ can be programmed using a serial interface. The device has a 32-bit frequency tuning word that determines the output frequency, and a 14-bit phase tuning word that determines the output phase. Consult the datasheet for the specific programming sequence and register maps.
  • The typical current consumption of the AD9952YSVZ is 350 mA at 3.3 V supply voltage. However, this can vary depending on the specific operating conditions and configuration of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9952YSVZ Overview

Use the download button to access the AD9952YSVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD995, or try a keyword search, such as DSP Peripherals

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
