AD9954YSVZ - Analog Devices

Description: AD9954YSVZ, Direct Digital Synthesizer 14-Bit 400000ksps, 48-Pin TQFP EP

Download AD9954YSVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

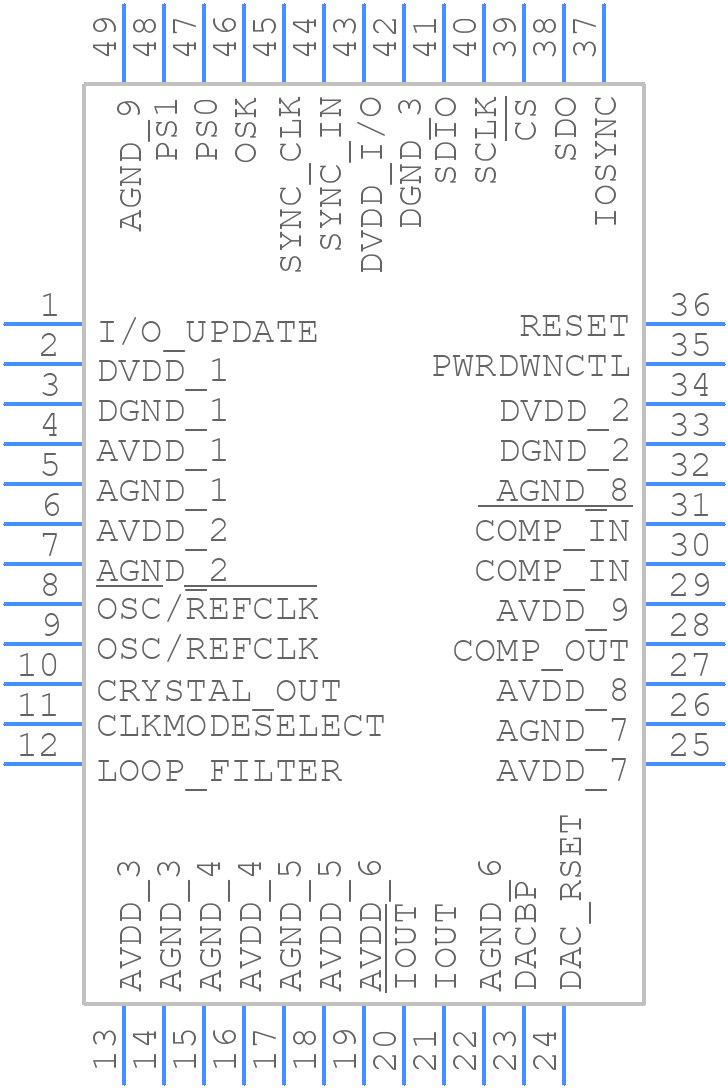

AD9954YSVZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9954YSVZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-48-4 (TQFP)
click to zoom
3D Models
AD9954YSVZ - Analog Devices - 3D model - Quad Flat Packages - SV-48-4 (TQFP)
click to zoom

AD9954YSVZ Details

  • Manufacturer Part Number:

    AD9954YSVZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SV-48-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.012207%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD9954YSVZ Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the AD9954YSVZ is 1.4 GHz. However, the actual clock frequency used may be limited by the specific application and system requirements.
  • To optimize the SFDR of the AD9954YSVZ, ensure that the clock signal is clean and free of jitter, use a high-quality power supply, and optimize the digital-to-analog converter (DAC) output stage for the specific application.
  • The recommended power-up sequence for the AD9954YSVZ is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other damage.
  • The AD9954YSVZ can be interfaced with a FPGA or ASIC using a parallel or serial interface. The specific interface used will depend on the requirements of the application and the capabilities of the FPGA or ASIC. Consult the datasheet and application notes for more information.
  • The maximum output current of the AD9954YSVZ is 20 mA per channel. However, the actual output current used may be limited by the specific application and system requirements.
