ADA4051-2ACPZ-R7 - Analog Devices

Description: 1.8V, µPower, Zero-Drift, RRIO Dual Amplifier 1.8 V to 5.5 V 13 μA,−65°C to +150°C

Download ADA4051-2ACPZ-R7 Model
Schematic
symbols

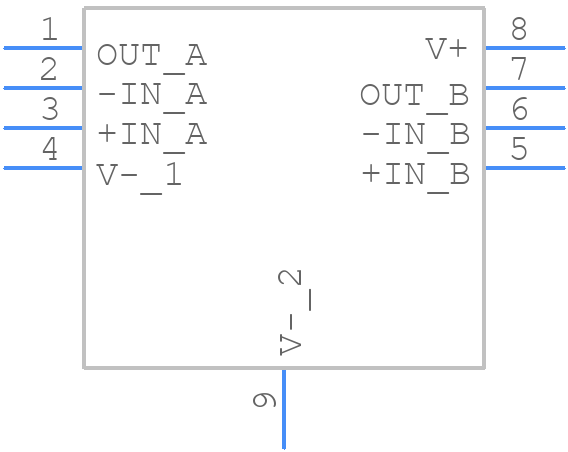

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4051-2ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-13_2025
click to zoom
3D Models
ADA4051-2ACPZ-R7 - Analog Devices  - 3D model - Small Outline No-lead - CP-8-13_2025
click to zoom

ADA4051-2ACPZ-R7 Details

  • Manufacturer Part Number:

    ADA4051-2ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.00007 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Slew Rate-Nom:

    0.06 V/us

  • Supply Current-Max:

    0.034 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    125

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    3 mm

ADA4051-2ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4051-2ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance. Additionally, it's recommended to place the device close to the analog signal sources and keep the power supply decoupling capacitors close to the device.
  • To ensure proper powering and decoupling of the ADA4051-2ACPZ-R7, use a high-quality power supply with low noise and ripple, and decouple the device with a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the device's power pins.
  • The ADA4051-2ACPZ-R7 is rated for operation over the industrial temperature range of -40°C to +125°C, but it's recommended to derate the device's performance at temperatures above 85°C to ensure reliability and accuracy.
  • While the ADA4051-2ACPZ-R7 is a robust device, it's still a sensitive electronic component. In high-vibration or high-shock environments, it's recommended to use additional mechanical support, such as a shock-absorbing mounting system, to ensure the device's reliability and performance.
  • To troubleshoot common issues with the ADA4051-2ACPZ-R7, start by checking the power supply and decoupling, then verify the PCB layout and signal routing. Use an oscilloscope to measure the device's output and input signals, and check for any signs of noise or oscillations. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
