ADA4062-4ACPZ-R7 - Analog Devices

Description: Low Power JFET-Input Op Amps

Download ADA4062-4ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

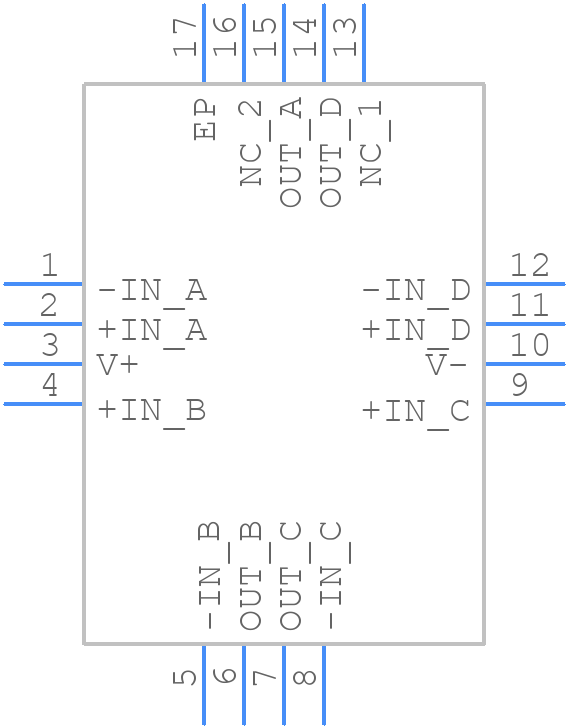

ADA4062-4ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4062-4ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)_2022
click to zoom
3D Models
ADA4062-4ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-22)_2022
click to zoom

ADA4062-4ACPZ-R7 Details

  • Manufacturer Part Number:

    ADA4062-4ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220WEED-6, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.005 µA

  • Bias Current-Max (IIB) @25C:

    0.00005 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC10,.05X.06,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    3.3 V/us

  • Supply Current-Max:

    1.04 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1400

  • Voltage Gain-Min:

    3980

  • Wideband:

    NO

  • Width:

    3 mm

ADA4062-4ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4062-4ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure the ADA4062-4ACPZ-R7 operates within its recommended operating conditions, it's essential to maintain the recommended voltage supply range (2.7V to 5.5V), keep the junction temperature within the specified range (-40°C to 125°C), and avoid exceeding the maximum ratings for input voltage, current, and power dissipation.
  • When selecting capacitors for the ADA4062-4ACPZ-R7, consider the capacitor's voltage rating, capacitance value, and equivalent series resistance (ESR). Choose capacitors with a voltage rating that exceeds the maximum voltage supply, and select capacitance values that meet the recommended values in the datasheet. Additionally, consider the ESR to ensure it meets the recommended maximum ESR values.
  • To troubleshoot common issues with the ADA4062-4ACPZ-R7, start by verifying the PCB layout and ensuring that the device is properly connected. Check for any signs of oscillations or instability, such as excessive noise or voltage fluctuations. Use an oscilloscope to measure the output voltage and current, and verify that the input voltage and current are within the recommended ranges. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • The ADA4062-4ACPZ-R7 has a maximum junction temperature rating of 150°C. To ensure reliable operation, it's essential to maintain a safe operating temperature by providing adequate heat dissipation. Use thermal vias, thermal pads, or heat sinks to dissipate heat, and ensure good airflow around the device. Monitor the device's temperature and adjust the thermal management strategy as needed to prevent overheating.
