ADA4091-4ACPZ-RL - Analog Devices

Description: Operational Amplifier

Download ADA4091-4ACPZ-RL Model

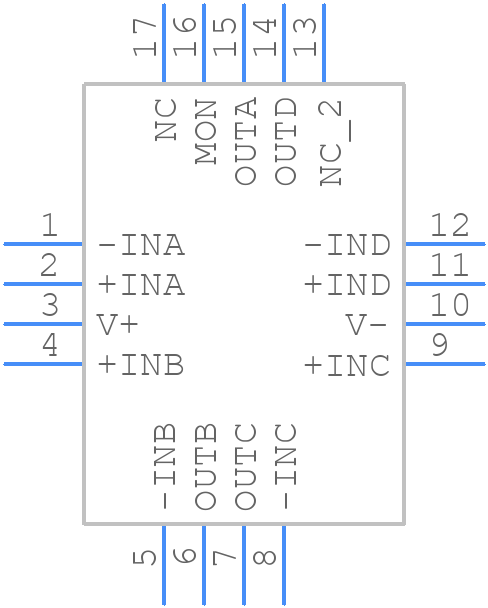

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4091-4ACPZ-RL - Analog Devices PCB footprint - Other - Other - QFN65P400X400X80-17N
click to zoom
3D Models
ADA4091-4ACPZ-RL - Analog Devices  - 3D model - Other - QFN65P400X400X80-17N
click to zoom

ADA4091-4ACPZ-RL Details

  • Manufacturer Part Number:

    ADA4091-4ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220WGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.35 µA

  • Bias Current-Max (IIB) @25C:

    1 µA

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    113 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    400 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.46 V/us

  • Supply Current-Max:

    1.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1220

  • Voltage Gain-Min:

    31620

  • Wideband:

    NO

  • Width:

    4 mm

ADA4091-4ACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4091-4 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The gain resistor (Rg) value depends on the desired gain and the input impedance of the circuit. A higher Rg value results in higher gain, but also increases noise and distortion. A good starting point is to use the recommended Rg value from the datasheet and adjust it based on the specific application requirements.
  • The maximum power dissipation of the ADA4091-4 is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W. However, it's recommended to keep the power dissipation below 1W to ensure reliable operation.
  • Yes, the ADA4091-4 can be used in a single-supply configuration, but it requires careful consideration of the input common-mode voltage range and the output voltage swing. The device can operate from a single supply voltage as low as 2.7V, but the input common-mode voltage range is limited to 1.2V to VCC-1.2V.
  • To protect the ADA4091-4 from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use EMI filters or ferrite beads on the input and output lines. Additionally, use a low-pass filter or a shielding material to reduce radiated emissions.
