ADA4096-2ACPZ-RL - Analog Devices

Description: Op Amp Dual Micropower Amplifier R-R I/O ±15V/30V 8-Pin LFCSP EP T/R

Download ADA4096-2ACPZ-RL Model

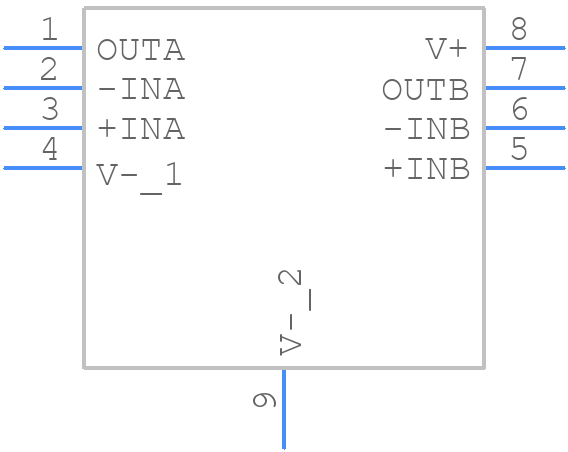

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4096-2ACPZ-RL - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-10
click to zoom
3D Models
ADA4096-2ACPZ-RL - Analog Devices  - 3D model - Small Outline No-lead - CP-8-10
click to zoom

ADA4096-2ACPZ-RL Details

  • Manufacturer Part Number:

    ADA4096-2ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    2 X 2 MM, ROHS COMPLIANT, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.019 µA

  • Bias Current-Max (IIB) @25C:

    0.015 µA

  • Common-mode Reject Ratio-Min:

    72 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.65 mm

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    595

  • Voltage Gain-Min:

    7080

  • Wideband:

    NO

  • Width:

    2 mm

ADA4096-2ACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4096-2ACPZ-RL involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power pins with capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The gain resistors for the ADA4096-2ACPZ-RL should be chosen based on the desired gain and bandwidth. A good starting point is to use 1% or 0.1% tolerance resistors with a value between 1 kΩ and 100 kΩ. The datasheet provides a gain resistor calculator to help with the selection.
  • The maximum power dissipation for the ADA4096-2ACPZ-RL is 1.4 W, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance of the package (125°C/W). The actual power dissipation should be derated based on the ambient temperature and the PCB layout.
  • Yes, the ADA4096-2ACPZ-RL can be used in a single-supply configuration, but the input common-mode range is limited to VCC - 1.5 V. The output voltage swing is also reduced in single-supply operation. A voltage divider or a voltage reference can be used to set the input common-mode voltage.
  • The ADA4096-2ACPZ-RL has built-in ESD protection, but additional protection measures can be taken. TVS diodes or ESD protection arrays can be used to protect the input pins from overvoltage and ESD events. The power pins should be decoupled with capacitors and protected with voltage regulators or overvoltage protection circuits.
