ADA4096-2WARMZ-R7 - Analog Devices

Description: Precision Amplifiers 30V,Micropower, OVP, RRIO OpAmp

Download ADA4096-2WARMZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

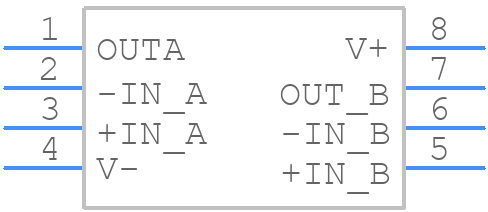

ADA4096-2WARMZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4096-2WARMZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead MSOP
click to zoom
3D Models
ADA4096-2WARMZ-R7 - Analog Devices - 3D model - Small Outline Packages - 8-Lead MSOP
click to zoom

ADA4096-2WARMZ-R7 Details

  • Manufacturer Part Number:

    ADA4096-2WARMZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.019 µA

  • Bias Current-Max (IIB) @25C:

    0.015 µA

  • Common-mode Reject Ratio-Min:

    72 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    595

  • Voltage Gain-Min:

    7080

  • Wideband:

    NO

  • Width:

    3 mm

ADA4096-2WARMZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4096-2WARMZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the op-amp close to the analog signal sources. Additionally, using a low-ESR capacitor for decoupling and keeping the input and output traces short and direct can help minimize noise and ensure optimal performance.
  • The gain resistor values for the ADA4096-2WARMZ-R7 depend on the desired gain and bandwidth of the amplifier. A good starting point is to use the gain resistor calculator provided by Analog Devices or to consult the application notes for the ADA4096-2WARMZ-R7. It's also important to consider the tolerance and temperature coefficient of the resistors to ensure stable operation.
  • The maximum power dissipation of the ADA4096-2WARMZ-R7 is 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the ambient temperature within the recommended operating range. Additionally, minimizing the quiescent current and using a low-dropout voltage regulator can help reduce power consumption and heat generation.
  • Yes, the ADA4096-2WARMZ-R7 can be used in a single-supply configuration. To do so, connect the negative supply pin to ground, and use a voltage divider or a voltage reference to set the midpoint of the input common-mode range. Additionally, ensure that the input signal is biased to the midpoint of the supply voltage to maintain optimal performance.
  • To troubleshoot common issues with the ADA4096-2WARMZ-R7, start by checking the PCB layout and ensuring that the op-amp is properly decoupled and bypassed. Verify that the input and output signals are within the recommended operating range, and check for any signs of oscillation or distortion. Use an oscilloscope to visualize the signals and identify any anomalies. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADA4096-2WARMZ-R7 Overview

Use the download button to access the ADA4096-2WARMZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA40, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
