ADA4096-4ACPZ-R7 - Analog Devices

Description: 30 V, Micropower, Overvoltage Protection, Rail-to-Rail Input/Output Quad Op Amplifier

Download ADA4096-4ACPZ-R7 Model

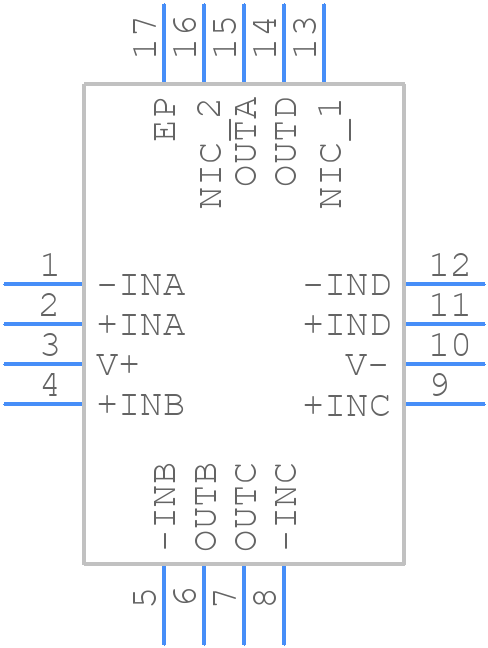

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4096-4ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-22 [LFCSP_WQ]
click to zoom
3D Models
ADA4096-4ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-16-22 [LFCSP_WQ]
click to zoom

ADA4096-4ACPZ-R7 Details

  • Manufacturer Part Number:

    ADA4096-4ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220WEED, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.03 µA

  • Bias Current-Max (IIB) @25C:

    0.025 µA

  • Common-mode Reject Ratio-Min:

    91 dB

  • Common-mode Reject Ratio-Nom:

    103 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    595

  • Voltage Gain-Min:

    7080

  • Wideband:

    NO

  • Width:

    3 mm

ADA4096-4ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4096-4ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the op-amp close to the signal sources. Additionally, using a 4-layer PCB with a dedicated analog layer can help reduce noise and improve performance.
  • To ensure proper biasing, connect the V+ pin to a stable voltage source between 2.7V and 5.5V, and the V- pin to a stable voltage source between -2.7V and -5.5V. The common-mode voltage should be within the range of V- and V+. Additionally, ensure that the input voltage is within the common-mode range to prevent distortion and ensure optimal performance.
  • The ADA4096-4ACPZ-R7 can drive a maximum capacitive load of 100pF. Exceeding this limit may cause oscillations or instability in the amplifier. If a larger capacitive load is required, consider adding a series resistor to reduce the capacitive load or using a buffer amplifier.
  • To reduce noise and EMI, use a shielded enclosure, keep the op-amp close to the signal sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise. Additionally, use a ground plane and keep the analog and digital grounds separate to reduce noise coupling.
  • The thermal resistance of the ADA4096-4ACPZ-R7 is 30°C/W. High temperatures can affect the device's performance, causing increased offset voltage, reduced bandwidth, and decreased slew rate. Ensure good airflow and heat sinking to keep the device within the recommended operating temperature range.
