ADA4096-4ACPZ-RL - Analog Devices

Description: 30 V, Micropower, Overvoltage Protection, Rail-to-Rail Input/Output Quad Op Amplifier

Download ADA4096-4ACPZ-RL Model

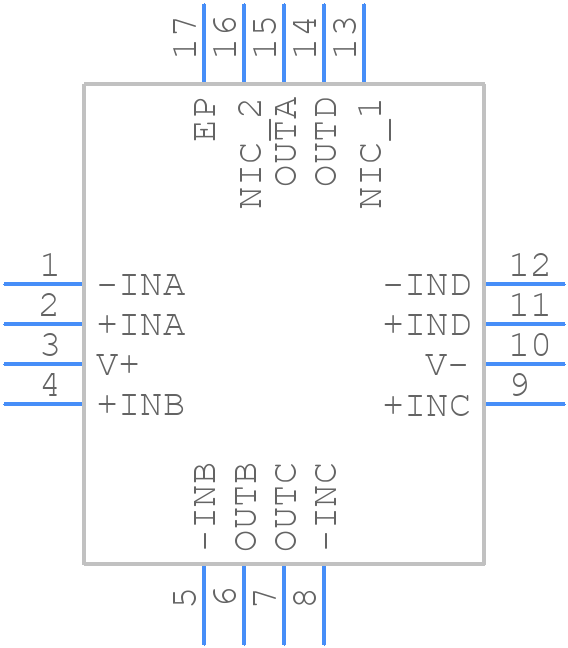

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4096-4ACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-22)
click to zoom
3D Models
ADA4096-4ACPZ-RL - Analog Devices  - 3D model - Quad Flat No-Lead - (CP-16-22)
click to zoom

ADA4096-4ACPZ-RL Details

  • Manufacturer Part Number:

    ADA4096-4ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220WEED, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.03 µA

  • Bias Current-Max (IIB) @25C:

    0.025 µA

  • Common-mode Reject Ratio-Min:

    91 dB

  • Common-mode Reject Ratio-Nom:

    103 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    0.3 V/us

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    595

  • Voltage Gain-Min:

    7080

  • Wideband:

    NO

  • Width:

    3 mm

ADA4096-4ACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4096-4ACPZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The ADA4096-4ACPZ-RL is specified to operate from -40°C to 125°C. Ensure that the device is properly heatsinked and that the ambient temperature is within the specified range. Also, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management.
  • The recommended power-up sequence for the ADA4096-4ACPZ-RL is to power up the analog supply (VCC) before the digital supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent unwanted digital noise from affecting the analog circuitry.
  • To minimize EMI when using the ADA4096-4ACPZ-RL, use a shielded enclosure, keep the device away from high-frequency sources, use a low-pass filter on the input signals, and ensure that the PCB layout is optimized for EMI reduction.
  • The recommended method for driving the ADA4096-4ACPZ-RL's analog inputs is to use a low-impedance source, such as an op-amp output, and to ensure that the input signal is properly filtered and buffered to prevent noise and distortion.
