ADA4098-2BRZ-RL7 - Analog Devices

Description: 50 V, 1 MHz, 165 μA per Channel, Robust, Over-The-Top, Precision Op Amps

Download ADA4098-2BRZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

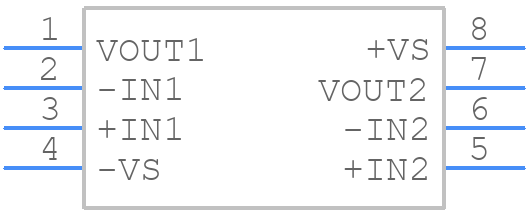

Symbol
ADA4098-2BRZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4098-2BRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - *ADA4098-2BRZ-RL7
click to zoom
3D Models
ADA4098-2BRZ-RL7 - Analog Devices - 3D model - Small Outline Packages - *ADA4098-2BRZ-RL7
click to zoom

ADA4098-2BRZ-RL7 Details

  • Manufacturer Part Number:

    ADA4098-2BRZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.01 µA

  • Bias Current-Max (IIB) @25C:

    0.0007 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    90 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -25 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.2 V/us

  • Slew Rate-Nom:

    0.85 V/us

  • Supply Current-Max:

    0.584 mA

  • Supply Voltage Limit-Max:

    25 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1050

  • Voltage Gain-Min:

    707945

  • Wideband:

    NO

  • Width:

    3.9 mm

ADA4098-2BRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4098-2BRZ-RL7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and to avoid routing high-frequency signals near the op-amp.
  • The choice of gain resistors for the ADA4098-2BRZ-RL7 depends on the desired gain and bandwidth of the amplifier. A good starting point is to use 1% or 0.1% tolerance resistors with a value between 1 kΩ and 100 kΩ. The datasheet provides a gain resistor selection table to help with this process.
  • The maximum power dissipation of the ADA4098-2BRZ-RL7 is 1.4 W, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance of the package (125°C/W). It's essential to ensure that the device is properly heat-sinked and that the power supply voltage and current are within the recommended limits.
  • Yes, the ADA4098-2BRZ-RL7 can be used as a single-ended amplifier by tying the negative input to ground and using the positive input as the signal input. However, this configuration will result in a lower common-mode rejection ratio (CMRR) and a higher offset voltage compared to a differential amplifier configuration.
  • To troubleshoot oscillations or instability issues with the ADA4098-2BRZ-RL7, start by checking the PCB layout for any signs of parasitic capacitance or inductance. Ensure that the power supply is clean and well-regulated, and that the decoupling capacitors are properly placed. Also, check the gain and bandwidth of the amplifier to ensure that they are within the recommended specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4098-2BRZ-RL7 Overview

Use the download button to access the ADA4098-2BRZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA40, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
