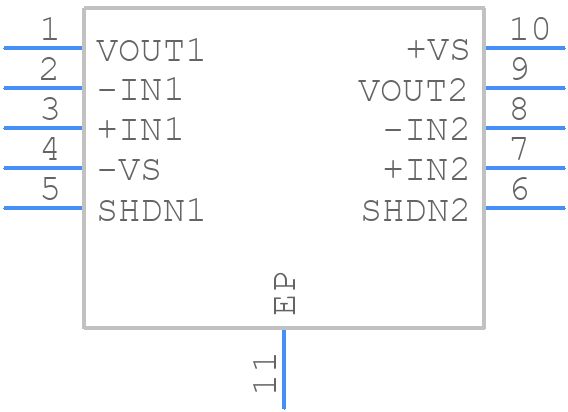

ADA4098-2HCPZ-RL7 - Analog Devices

ADA4098-2HCPZ-RL7 Details

• Manufacturer Part Number:

  ADA4098-2HCPZ-RL7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-10

• Pin Count:

  10

• Manufacturer Package Code:

  05-08-1699

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.025 µA

• Bias Current-Max (IIB) @25C:

  0.0007 µA

• Common-mode Reject Ratio-Min:

  108 dB

• Common-mode Reject Ratio-Nom:

  140 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  100 µV

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Low-Bias:

  YES

• Low-Offset:

  YES

• Micropower:

  YES

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -25 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  10

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.12,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.8 mm

• Slew Rate-Min:

  0.2 V/us

• Slew Rate-Nom:

  0.85 V/us

• Supply Current-Max:

  0.63 mA

• Supply Voltage Limit-Max:

  25 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  1050

• Voltage Gain-Min:

  707945

• Wideband:

  NO

• Width:

  3 mm
