ADA4099-2BRZ-RL7 - Analog Devices

Description: 50 V, 8 MHz, 1.5 mA per Channel, Robust, Over-The-Top, Precision Op Amps

Download ADA4099-2BRZ-RL7 Model

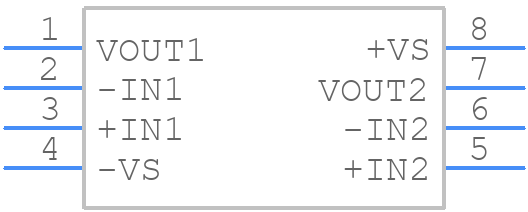

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4099-2BRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
ADA4099-2BRZ-RL7 - Analog Devices  - 3D model - Small Outline Packages - (R-8)
click to zoom

ADA4099-2BRZ-RL7 Details

  • Manufacturer Part Number:

    ADA4099-2BRZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.035 µA

  • Bias Current-Max (IIB) @25C:

    0.01 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    126 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    105 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -25 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    5.5 V/us

  • Supply Current-Max:

    0.054 mA

  • Supply Voltage Limit-Max:

    25 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    8000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3.9 mm

ADA4099-2BRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4099-2BRZ-RL7 should include a solid ground plane, separate analog and digital power planes, and careful routing of sensitive analog signals. Additionally, it's recommended to place the op-amp close to the signal sources and use short, direct traces to minimize noise pickup.
  • The gain resistors for the ADA4099-2BRZ-RL7 should be chosen based on the desired gain and bandwidth of the amplifier. A good starting point is to use the recommended values from the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the tolerance and temperature coefficient of the resistors to ensure stable operation.
  • The maximum power dissipation of the ADA4099-2BRZ-RL7 is 1.4W. To ensure it doesn't overheat, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the ambient temperature below 85°C. Additionally, the device should be operated within the recommended operating conditions and not be subjected to excessive voltage or current.
  • Yes, the ADA4099-2BRZ-RL7 can be used in a single-supply configuration. To do so, the input signals should be level-shifted to be within the common-mode range of the op-amp, and the output should be biased to the midpoint of the supply voltage. Additionally, the gain resistors should be chosen to ensure the output signal is within the desired range.
  • To ensure EMC with the ADA4099-2BRZ-RL7, it's recommended to use proper shielding, grounding, and filtering techniques. The device should be placed in a shielded enclosure, and the PCB should be designed to minimize radiation and susceptibility to electromagnetic interference. Additionally, the device should be operated within the recommended frequency range and not be subjected to excessive electromagnetic radiation.
