ADA4099-2BRZ - Analog Devices

Description: 50 V, 8 MHz, 1.5 mA per Channel, Robust, Over-The-Top, Precision Op Amps

Download ADA4099-2BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

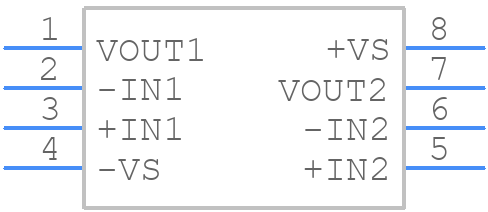

ADA4099-2BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4099-2BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N]
click to zoom
3D Models
ADA4099-2BRZ - Analog Devices - 3D model - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N]
click to zoom

ADA4099-2BRZ Details

  • Manufacturer Part Number:

    ADA4099-2BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.035 µA

  • Bias Current-Max (IIB) @25C:

    0.01 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    126 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    105 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -25 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    5.5 V/us

  • Supply Current-Max:

    0.054 mA

  • Supply Voltage Limit-Max:

    25 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    8000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3.9 mm

ADA4099-2BRZ Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and symmetrical, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be shielded from high-frequency noise sources.
  • To minimize EMI and RFI susceptibility, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering components such as ferrite beads or common-mode chokes on the input and output lines. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility.
  • The recommended power-up sequence is to apply the power supplies (V+ and V-) simultaneously, with the input signals applied after the power supplies have stabilized. This helps to prevent latch-up and ensures proper device operation.
  • To determine the suitable heat sink, calculate the maximum power dissipation of the device based on the application's requirements, and then select a heat sink with a thermal resistance that ensures the junction temperature remains within the recommended operating range.
  • When using the ADA4099-2BRZ in a high-temperature environment, ensure that the device is operated within its recommended temperature range, and consider the effects of temperature on the device's performance, such as reduced bandwidth and increased offset voltage. Additionally, ensure that the PCB and surrounding components are designed to operate at the elevated temperature.
