ADA4099-2HRZ - Analog Devices

Description: 50 V, 8 MHz, 1.5 mA per Channel, Robust, Over-The-Top, Precision Op Amps

Download ADA4099-2HRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

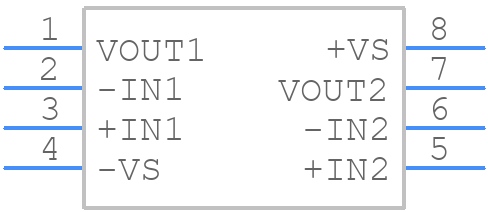

ADA4099-2HRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4099-2HRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADA4099-2HRZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADA4099-2HRZ Details

  • Manufacturer Part Number:

    ADA4099-2HRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.1 µA

  • Bias Current-Max (IIB) @25C:

    0.01 µA

  • Common-mode Reject Ratio-Min:

    107 dB

  • Common-mode Reject Ratio-Nom:

    126 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    90 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -25 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    5.5 V/us

  • Supply Current-Max:

    0.054 mA

  • Supply Voltage Limit-Max:

    25 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    8000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3.9 mm

ADA4099-2HRZ Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and symmetrical, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be shielded from high-frequency noise sources.
  • The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. A good starting point is to use the recommended values from the datasheet, and then adjust them based on simulation and measurement results. It's also important to consider the resistor's tolerance, temperature coefficient, and parasitic capacitance.
  • The maximum power dissipation of the ADA4099-2HRZ is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Make sure to derate the power dissipation based on the ambient temperature and package thermal resistance.
  • Yes, the ADA4099-2HRZ can be used in a single-supply configuration. However, the input common-mode range is limited to Vcc - 1.5V, and the output voltage swing is reduced. Additionally, the device may require a voltage divider or a voltage reference to set the input common-mode voltage.
  • To protect the ADA4099-2HRZ from EMI, use a shielded enclosure, keep the device away from high-frequency noise sources, and use EMI filters or common-mode chokes on the input and output lines. Additionally, use a low-pass filter or a ferrite bead on the power supply lines to reduce high-frequency noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4099-2HRZ Overview

Use the download button to access the ADA4099-2HRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA40, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
