ADA4304-2ACPZ-R7 - Analog Devices

Description: 1:2 Single-Ended, Low Cost, Active RF Splitter

Download ADA4304-2ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

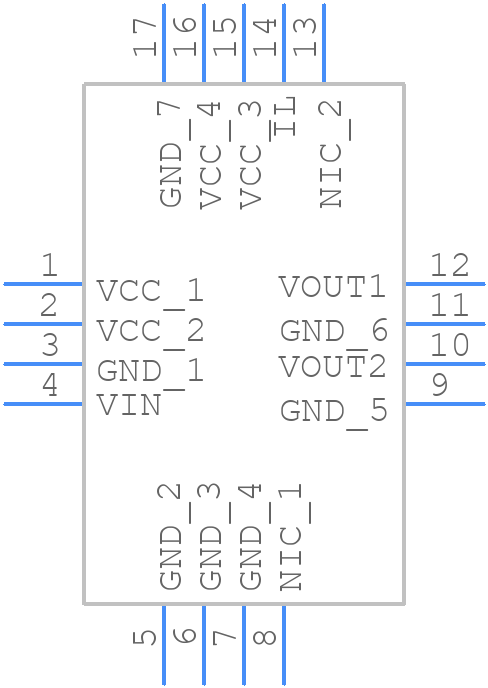

ADA4304-2ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4304-2ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-VFQFN Exposed Pad, CSP
click to zoom
3D Models
ADA4304-2ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 16-VFQFN Exposed Pad, CSP
click to zoom

ADA4304-2ACPZ-R7 Details

  • Manufacturer Part Number:

    ADA4304-2ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MS-220, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    75 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    865 MHz

  • Operating Frequency-Min:

    54 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SPLITTER

  • Supply Current-Max:

    105 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ADA4304-2ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4304-2ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADA4304-2ACPZ-R7, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VDD and GND pins, and a smaller capacitor (e.g., 100nF ceramic) between the AVDD and AGND pins. Additionally, use a separate power supply for the analog and digital sections.
  • The ADA4304-2ACPZ-R7 has an operating temperature range of -40°C to +125°C, but it's recommended to operate it within a range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues with the ADA4304-2ACPZ-R7, check the PCB layout for any mistakes or noise coupling, ensure proper power supply decoupling, and verify that the input signals are within the recommended range. Also, check for any signs of overheating or physical damage to the device.
  • The ADA4304-2ACPZ-R7 is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure its reliability and safety in critical applications. Additionally, consult with Analog Devices Inc. for specific guidance on using the device in such applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4304-2ACPZ-R7 Overview

Use the download button to access the ADA4304-2ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA43, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
