ADA4500-2ACPZ-R7 - Analog Devices

Description: 10 MHz, 14.5 nV/√Hz, Rail-to-Rail I/O, Zero Input Crossover Distortion Amplifier

Download ADA4500-2ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

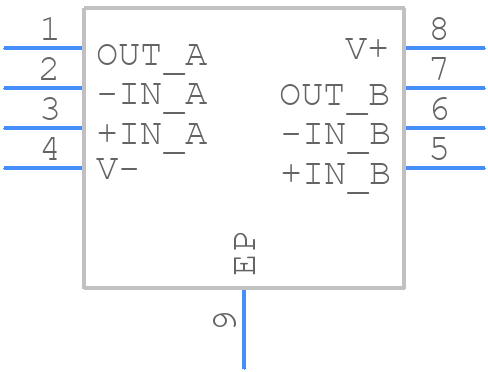

ADA4500-2ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4500-2ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-11)
click to zoom
3D Models
ADA4500-2ACPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - (CP-8-11)
click to zoom

ADA4500-2ACPZ-R7 Details

  • Manufacturer Part Number:

    ADA4500-2ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00019 µA

  • Bias Current-Max (IIB) @25C:

    0.000002 µA

  • Common-mode Reject Ratio-Min:

    84 dB

  • Common-mode Reject Ratio-Nom:

    115 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    700 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Nom:

    5.5 V/us

  • Supply Current-Max:

    1.7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3 mm

ADA4500-2ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4500-2ACPZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VDD and GND pins, and a smaller capacitor (e.g., 100nF ceramic) between the VDD and AVDD pins. Also, use a separate power plane for the analog and digital supplies.
  • The recommended clock frequency for the ADA4500-2ACPZ-R7 is between 1MHz and 10MHz. A higher clock frequency can improve the device's bandwidth and settling time, but may also increase power consumption and noise sensitivity.
  • To optimize the ADA4500-2ACPZ-R7's performance, consider the specific requirements of your application, such as signal frequency, amplitude, and noise tolerance. Adjust the device's gain, bandwidth, and filtering settings accordingly, and consider using external components to further optimize performance.
  • Common pitfalls to avoid when designing with the ADA4500-2ACPZ-R7 include inadequate power supply decoupling, poor PCB layout, and insufficient noise filtering. Additionally, be mindful of the device's input and output voltage ranges, and ensure that the device is operated within its recommended operating conditions.
