ADA4570BRZ - Analog Devices

Description: Integrated AMR Angle Sensor and Signal Conditioner with Differential Outputs

Download ADA4570BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

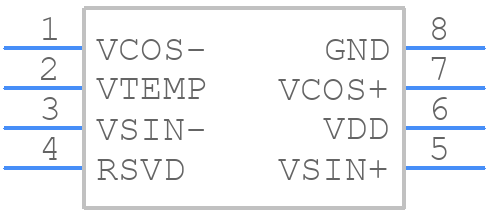

Symbol
ADA4570BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4570BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 150 MIL_1-2
click to zoom
3D Models
ADA4570BRZ - Analog Devices - 3D model - Small Outline Packages - SOIC 150 MIL_1-2
click to zoom

ADA4570BRZ Details

  • Manufacturer Part Number:

    ADA4570BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ANGLE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

ADA4570BRZ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the ADA4570BRZ. Ensure that the input and output traces are separated, and the power supply lines are decoupled. Use a solid ground plane and keep the analog and digital sections separate. Refer to the application note AN-931 for more details.
  • The output filter depends on the specific requirements of your application. For a simple RC filter, use a 1 kΩ resistor and a 10 nF capacitor. For a more complex filter, consider a 2nd or 3rd order Butterworth filter. Consult the datasheet and application notes for more information.
  • The ADA4570BRZ can handle input voltages up to 12 V, but it's recommended to keep the input voltage within the specified range of 2.7 V to 5.5 V for optimal performance and to prevent damage to the device.
  • The gain of the ADA4570BRZ can be set using external resistors. Use the gain equation provided in the datasheet to calculate the required resistor values. For example, for a gain of 10, use Rf = 1 kΩ and Rg = 10 kΩ.
  • The typical power consumption of the ADA4570BRZ is around 1.2 mA at 3.3 V supply voltage. However, this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4570BRZ Overview

Use the download button to access the ADA4570BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA45, or try a keyword search, such as Other Sensors/Transducers
