ADA4571-2WHRZ-RL - Analog Devices

Description: Board Mount Hall Effect / Magnetic Sensors Dual AMR MAGNETIC SENSOR

Download ADA4571-2WHRZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

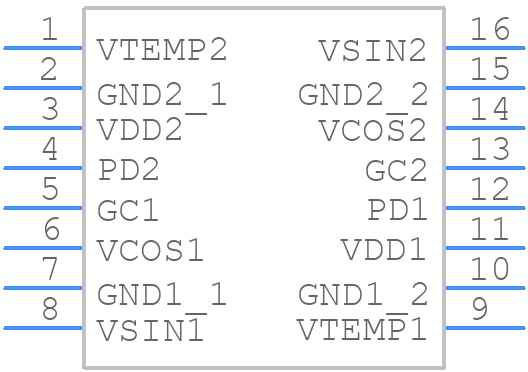

ADA4571-2WHRZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4571-2WHRZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADA4571-2WHRZ-RL - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADA4571-2WHRZ-RL Details

  • Manufacturer Part Number:

    ADA4571-2WHRZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16-S

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADA4571-2WHRZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4571-2WHRZ-RL involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. The VEE pin should be connected to a stable negative voltage source or ground, depending on the application. The input common-mode voltage should be within the recommended range.
  • The maximum power dissipation of the ADA4571-2WHRZ-RL is 670mW. However, this can be affected by the ambient temperature, so it's essential to consider the thermal characteristics of the device and the PCB design.
  • The ADA4571-2WHRZ-RL is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal characteristics of the device and the PCB design to ensure reliable operation.
  • To protect the ADA4571-2WHRZ-RL from ESD, handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag. The device also has built-in ESD protection, but it's still essential to follow proper handling and storage procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4571-2WHRZ-RL Overview

Use the download button to access the ADA4571-2WHRZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA45, or try a keyword search, such as Other Signal Circuits
