ADA4571BRZ-R7 - Analog Devices

Description: Integrated AMR Angle Sensor and Signal Conditioner

Download ADA4571BRZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

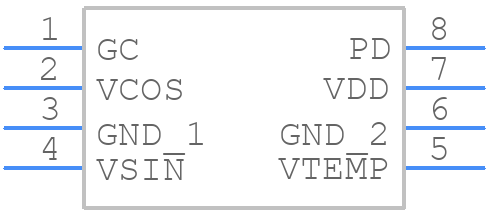

Symbol
ADA4571BRZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4571BRZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 150 MIL
click to zoom
3D Models
ADA4571BRZ-R7 - Analog Devices - 3D model - Small Outline Packages - SOIC 150 MIL
click to zoom

ADA4571BRZ-R7 Details

  • Manufacturer Part Number:

    ADA4571BRZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MS-012-AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADA4571BRZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4571BRZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, make sure to connect the VPOS pin to a stable voltage source between 2.7V and 5.5V, and the VNEG pin to a stable voltage source between -2.7V and -5.5V. Also, ensure that the input common-mode voltage is within the specified range.
  • The maximum power dissipation of the ADA4571BRZ-R7 is 1.3W. However, this can be limited by the thermal resistance of the package and the PCB. It's essential to ensure proper thermal management to prevent overheating.
  • The ADA4571BRZ-R7 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures. It's essential to consider the temperature coefficient of the device and ensure proper thermal management when operating in high-temperature environments.
  • Common issues with the ADA4571BRZ-R7 can be troubleshooted by checking the PCB layout, ensuring proper biasing, and verifying that the input and output signals are within the specified ranges. Also, check for any signs of overheating, and ensure that the device is properly decoupled.
