Part Image

ADA4571BRZ - Analog Devices

Description: Integrated AMR Angle Sensor and Signal Conditioner

Download ADA4571BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

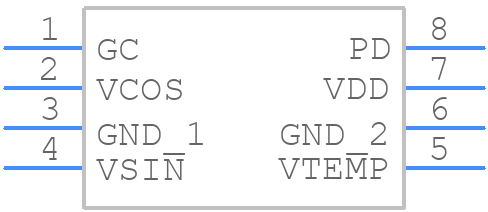

ADA4571BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4571BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 150 MIL_2023
click to zoom
3D Models
ADA4571BRZ - Analog Devices - 3D model - Small Outline Packages - SOIC 150 MIL_2023
click to zoom

ADA4571BRZ Details

  • Manufacturer Part Number:

    ADA4571BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MS-012-AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADA4571BRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4571BRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use of a 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, make sure to connect the VREF pin to a stable voltage reference, and decouple the VDD pin with a 10uF capacitor to ground. Also, ensure that the input common-mode voltage is within the recommended range of 1.5V to 3.5V.
  • To achieve optimal performance, it is recommended to use a low-pass filter or a band-pass filter to condition the input signal, depending on the specific application requirements. Additionally, ensure that the input signal is within the recommended range of 0V to 5V.
  • To troubleshoot common issues with the ADA4571BRZ, check for proper power supply decoupling, ensure that the input signal is within the recommended range, and verify that the device is properly biased. Also, check for any layout or routing issues that may be causing oscillations or instability.
  • The ADA4571BRZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, ensure good thermal conduction between the device and the PCB, and use a heat sink if necessary. Also, ensure that the device is operated within the recommended temperature range of -40°C to 125°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4571BRZ Overview

Use the download button to access the ADA4571BRZ schematic symbol, PCB footprint, and 3D model.
