ADA4610-2ACPZ-RL - Analog Devices

Description: Low Noise, Precision, Rail-to-Rail Output, JFET Dual Op Amp, 79mA, 9.5 MHz, -40°C ~ 125°C

Download ADA4610-2ACPZ-RL Model
Schematic

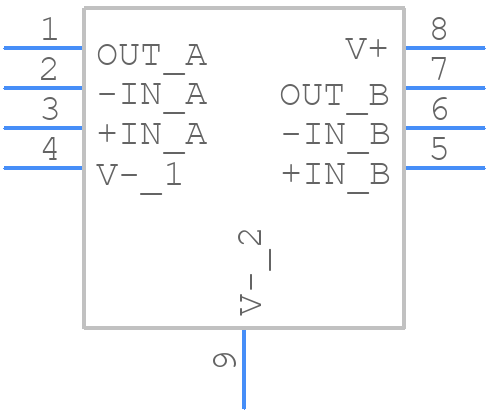

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4610-2ACPZ-RL - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-11_2025-3
click to zoom
3D Models
ADA4610-2ACPZ-RL - Analog Devices  - 3D model - Small Outline No-lead - CP-8-11_2025-3
click to zoom

ADA4610-2ACPZ-RL Details

  • Manufacturer Part Number:

    ADA4610-2ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CSP

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-11

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Bias Current-Max (IIB) @25C:

    0.000025 µA

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00025 µA

  • Input Offset Voltage-Max:

    1800 µV

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Slew Rate-Min:

    15 V/us

  • Slew Rate-Nom:

    21 V/us

  • Supply Current-Max:

    1.85 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    15400

  • Voltage Gain-Min:

    19952.62

  • Wideband:

    NO

  • Width:

    3 mm

ADA4610-2ACPZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4610-2ACPZ-RL involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the op-amp. Additionally, it's recommended to use a star-ground configuration and avoid routing digital signals near the op-amp.
  • To choose the correct gain resistors for the ADA4610-2ACPZ-RL, you need to consider the desired gain, bandwidth, and noise requirements. A good starting point is to use the gain resistor calculator tool provided by Analog Devices or to consult the application notes and design guides available on their website.
  • The maximum power dissipation for the ADA4610-2ACPZ-RL is 670mW. To ensure you don't exceed it, calculate the power dissipation using the formula Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Make sure to keep the junction temperature below 150°C.
  • Yes, the ADA4610-2ACPZ-RL can be used in a single-supply configuration. To do so, connect the negative supply pin to ground, and use a voltage divider to set the input common-mode voltage to half the supply voltage. Additionally, ensure that the input signal is biased around the midpoint of the supply voltage.
  • To filter out noise and oscillations when using the ADA4610-2ACPZ-RL, use a combination of passive and active filtering techniques. Add decoupling capacitors to the power supply pins, use a ferrite bead or a common-mode choke to filter out high-frequency noise, and consider adding a low-pass filter or a notch filter to the output stage.
