ADA4620-2ARZ - Analog Devices

Description: 36 V, Precision, Low Noise, 16.5 MHz JFET Op Amp with Rail-to-Rail Output

Download ADA4620-2ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

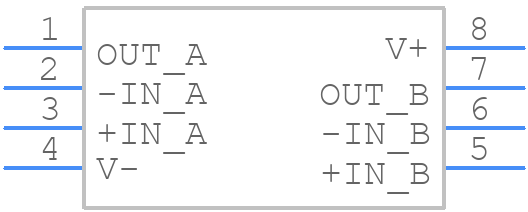

ADA4620-2ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4620-2ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8_2024
click to zoom
3D Models
ADA4620-2ARZ - Analog Devices - 3D model - Small Outline Packages - R-8_2024
click to zoom

ADA4620-2ARZ Details

  • Manufacturer Part Number:

    ADA4620-2ARZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Bias Current-Max (IIB) @25C:

    0.000005 µA

  • Common-mode Reject Ratio-Min:

    116 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    30 V/us

  • Supply Current-Max:

    3.8 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    18000

  • Voltage Gain-Min:

    199526.23149

  • Wideband:

    NO

  • Width:

    3.9 mm

ADA4620-2ARZ Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow a star-ground layout, keep the input and output traces short and away from noise sources, and use a solid ground plane. Additionally, decoupling capacitors should be placed close to the power pins, and the device should be powered from a low-noise supply.
  • The gain resistors should be chosen based on the desired gain and bandwidth of the amplifier. A higher gain resistor value will result in a higher gain, but may also reduce the bandwidth. The datasheet provides a gain resistor selection table to help with this process.
  • The maximum power dissipation of the ADA4620-2ARZ is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance of the package (125°C/W). The actual power dissipation will depend on the operating conditions and the ambient temperature.
  • Yes, the ADA4620-2ARZ can be used as a single-ended amplifier by tying the inverting input to ground and applying the input signal to the non-inverting input. However, this will reduce the common-mode rejection ratio (CMRR) and may affect the overall performance of the amplifier.
  • To reduce noise and oscillations, ensure that the circuit is properly bypassed, use a low-noise power supply, and minimize the length of the input and output traces. Additionally, adding a small capacitor (e.g. 10pF) between the output and the inverting input can help to reduce oscillations.
