ADA4666-2ACPZ-R7 - Analog Devices

Description: 18 V, 725 µA, 4 MHz CMOS RRIO Operational Amplifier

Download ADA4666-2ACPZ-R7 Model

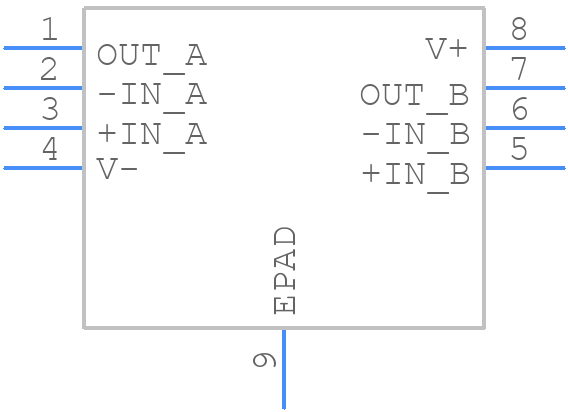

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADA4666-2ACPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)..
click to zoom
3D Models
ADA4666-2ACPZ-R7 - Analog Devices  - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)..
click to zoom

ADA4666-2ACPZ-R7 Details

  • Manufacturer Part Number:

    ADA4666-2ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-229WEED, LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00075 µA

  • Bias Current-Max (IIB) @25C:

    0.000015 µA

  • Common-mode Reject Ratio-Min:

    72 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Nom:

    1.8 V/us

  • Supply Current-Max:

    1.95 mA

  • Supply Voltage Limit-Max:

    20.5 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3 mm

ADA4666-2ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4666-2ACPZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VPOS and VNEG pins to a stable voltage source, and decouple them with 0.1uF and 10uF capacitors, respectively. The common-mode voltage should be set to VPOS/2, and the input signals should be biased around this voltage.
  • The maximum power dissipation of the ADA4666-2ACPZ-R7 is 1.4W. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and keep the ambient temperature below 85°C. Monitor the device temperature and reduce the power supply voltage or current if necessary.
  • To filter out noise and interference, use a low-pass filter with a cutoff frequency below the signal bandwidth. A 2nd-order Butterworth filter with a 100kHz cutoff frequency is recommended. Additionally, use shielding and grounding techniques to minimize electromagnetic interference.
  • The recommended input impedance is 1kΩ to 10kΩ, and the recommended output impedance is 1kΩ to 100kΩ. Impedance matching is critical to ensure maximum power transfer and minimal signal reflection.
