ADA4830-1BCPZ-R2 - Analog Devices

Description: Analog Devices ADA4830-1BCPZ-R2, Differential Amplifier 71MHz 8-Pin LFCSP WD

Download ADA4830-1BCPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

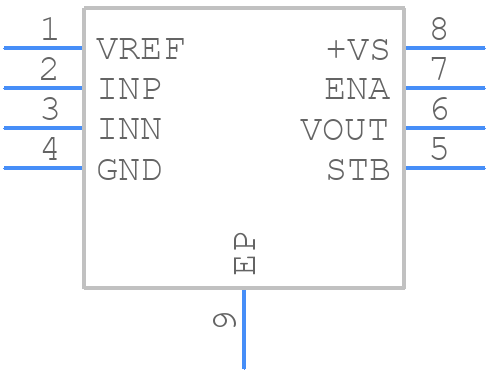

ADA4830-1BCPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4830-1BCPZ-R2 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - (CP-8-11)
click to zoom
3D Models
ADA4830-1BCPZ-R2 - Analog Devices - 3D model - Small Outline No-lead - (CP-8-11)
click to zoom

ADA4830-1BCPZ-R2 Details

  • Manufacturer Part Number:

    ADA4830-1BCPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-11

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    41 dB

  • Common-mode Reject Ratio-Nom:

    54 dB

  • Frequency Compensation:

    NO

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Min:

    165 V/us

  • Slew Rate-Nom:

    180 V/us

  • Supply Current-Max:

    8.7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    0.49

  • Wideband:

    YES

  • Width:

    3 mm

ADA4830-1BCPZ-R2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4830-1BCPZ-R2 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the bypass capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The recommended bypass capacitor values for the ADA4830-1BCPZ-R2 are 10nF and 100nF. The 10nF capacitor should be placed as close as possible to the device, while the 100nF capacitor can be placed slightly farther away. The capacitor values can be adjusted based on the specific application and noise requirements.
  • The ADA4830-1BCPZ-R2 is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications.
  • Yes, the ADA4830-1BCPZ-R2 can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC - 1.2V to VCC - 0.2V, and the output voltage swing is reduced. The user should consult the datasheet for specific single-supply operation guidelines.
  • To ensure EMI compliance, the user should follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components as needed. The user should also consult the datasheet for specific EMI-related guidelines and recommendations.
