ADA4841-2YRZ - Analog Devices

Description: ADA4841-2YRZ, Dual Operational Amplifier Voltage Feedback, R-R, 3, 5, 9V, 8-Pin SOIC

Download ADA4841-2YRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

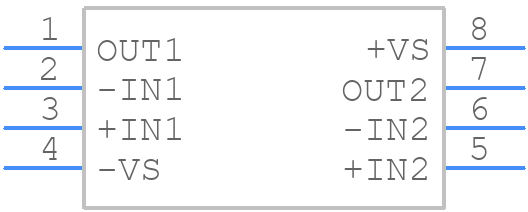

Symbol
ADA4841-2YRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADA4841-2YRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8-ren5
click to zoom
3D Models
ADA4841-2YRZ - Analog Devices - 3D model - Small Outline Packages - SOIC-8-ren5
click to zoom

ADA4841-2YRZ Details

  • Manufacturer Part Number:

    ADA4841-2YRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    5.3 µA

  • Bias Current-Max (IIB) @25C:

    5.3 µA

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    115 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    300 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    10 V/us

  • Slew Rate-Nom:

    13 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    112000

  • Wideband:

    YES

  • Width:

    3.9 mm

ADA4841-2YRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADA4841-2YRZ involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and ensure optimal performance.
  • The choice of gain resistors depends on the specific application requirements. A higher gain setting can provide higher sensitivity, but may also increase noise and reduce bandwidth. A lower gain setting can provide a wider bandwidth, but may reduce sensitivity. The ADA4841-2YRZ datasheet provides a gain resistor calculation formula to help with the selection process.
  • When driving the ADA4841-2YRZ with a single-ended input signal, it's essential to provide a return path for the input current to ensure proper operation. For differential input signals, the ADA4841-2YRZ can be configured to provide a differential gain of 1 or 2, depending on the application requirements.
  • Proper biasing of the ADA4841-2YRZ involves setting the input common-mode voltage to the recommended value (typically VCC/2) and ensuring that the output voltage is within the specified range. Incorrect biasing can result in reduced performance, increased distortion, and decreased output swing.
  • The ADA4841-2YRZ has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's essential to provide adequate heat sinking, avoid overheating, and follow proper PCB design and layout guidelines to minimize thermal gradients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADA4841-2YRZ Overview

Use the download button to access the ADA4841-2YRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADA48, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
